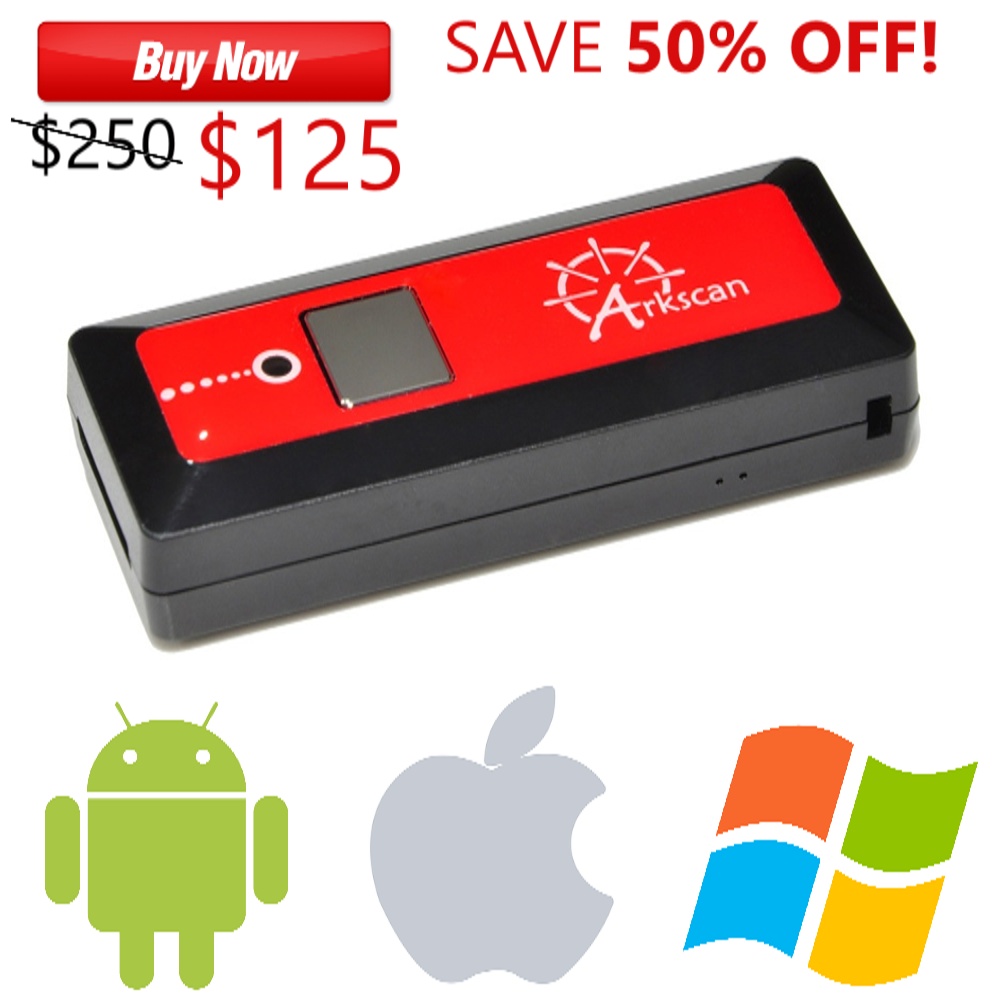

Powerful, Super-fast, and Pocket Sized
This compact, high quality barcode scanner delivers excellent performance. It is powered by a linear image sensor is capable of a 650 scan per second rate.
Battery That Will Last
Wireless Capability
Wide Compatibility
Safe For Your Eyes
No Additional Downloads Necessary
User Friendly
Excellent Customer Support


Compact Size

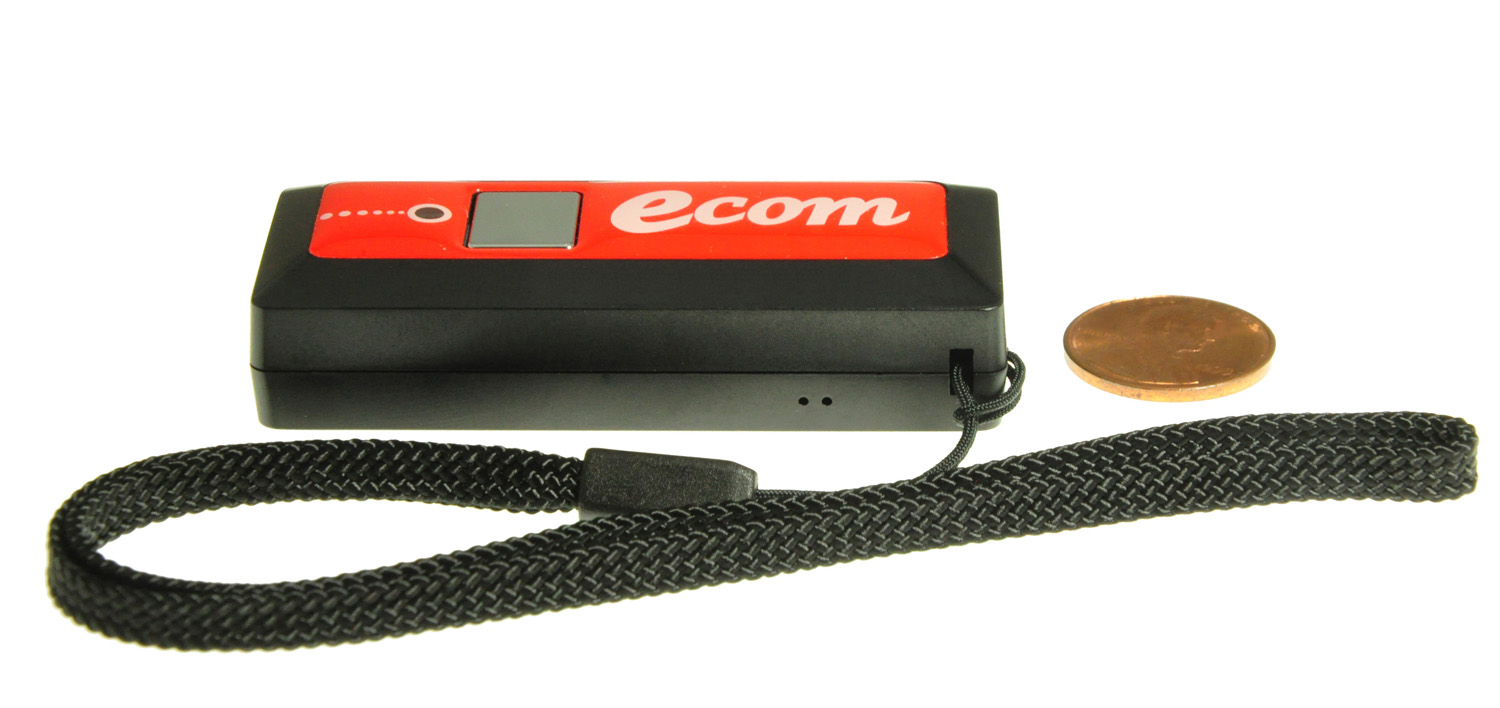

The world's smallest pocket-size and light weight wireless barcode scanner, L65xW24xH18mm (L2.5xW0.9x H0.7 inches) in size and weighing 25g/0.9oz. A great barcode reader for iOS (iPad and iPhone), Android, Tablet, Mac, Windows, Linux and more.

Supports Multiple Interface
Reliable wireless and USB connections, supports wireless HID (scan barcode to a text field of any application, works like wireless keyboard) and SPP (Serial Port Protocol); supports USB HID (works like USB keyboard) and VCP (Virtual COM Port).

Excellent Optical Performance
High sensitivity barcode sensor and high-speed processor (650 scans/second, read barcode within 0.1 second). Reads all major 1D barcodes in reading distance up to 9 inches away. 5000 reads per charge and unlimited reads with charging cable connected.

User Friendly
User-friendly, just simply Point and Click to scan. A must-have barcode scanner for iPad and iPhone with full compatibility to enable on-screen keyboard typing and barcode scanning without disconnecting the pairing.

Great Compatibility
Supports any computer device with Bluetooth interface or USB interface without any software installation. Capable to program and append prefix, postfix and other characters (Enter, Tab, Space, letters and so on).

iOS Toggle Function [On Screen Keyboard]
Most other bluetooth barcode scanners require you to disconnect your wireless connection before you are able to type using your on screen keyboard. The ES301 has a feature that allows you to easily toggle between scanning and typing without the hassle of disconnecting everytime you'd like to use the keyboard on your host device!
Optical & Performance
Light Source
625nm visible red LED
Linear Imager sensor
Scan Rate
650 Scans/Sec
5mil/ 0.127mm
Scan Angle
Print Contrast
Width of Field
85mm (13Mil Code39)
5 Mil Code39: 20 ~ 60mm
10 Mil Code39: 30 ~ 120mm
15 Mil Code39: 45 ~ 185mm
13 Mil UPC/ EAN: 30~140mm
Physical Characteristics
Dimension W24×L65×H18 mm
Weight 24.6g
Color Black
Material PC
Trigger Scan Button
Indicator Buzzer, LED
Operation Voltage 3.7 VDC ± 5%
Working Current < 150mA
Standby Current < 65mA
Idle Current < 100uA
Battery 3.7V, 350mAh, Lithium Battery
Number of Scan (per full charge 5400 scans (1 scan/ 5 secs, Bluetooth connected)
Radio Bluetooth 2.1 + EDR (Class2)
Range 33 ft/ 10m (line of sight)
Interface/ Profile SPP (Android, Mac)
HID (Android, iOS, Windows)
User Environment
Operating Temperature  0°~50°C
Storage Temperature  -20°~60°C
Humidity  0%~95%RH (Non-condensing)
Drop Durability 1.5M
Sealing IP42
Ambient Light 20,000 Lux (Fluorescent Light)
1D Symbologies UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar
EMC FCC, Class B, CE
ESD Functional after 4KV contact, 8KV Air discharge
Safety RoHS 2.0, WEEE
Description Notes Date Download
ES301 Quick Guide User Manual The Quick Guide is a mini version of the barode scanner user manual that comes with the barcode scanner package. July 7, 2016 Download Now

Additional download for ES301:

Description Notes Date Download
Wireless Quick Connection Setup Card One page quick guide for bluetooth pairing, the Quick Guide user manual also has the same content as this.  Nov 20, 2015 download
Bluetooth Connect Android App (Android & Use SPP mode only) For Android 2.3.7 and older, or your Android application doesn't support Direct External Device Connections in SPP mode Nov 20, 2015 nextlink
Bluetooth Connect Setup Instruction (Android & Use SPP mode only) Instruction for setup Bluetooth Connect Android App above; For Android device newer than version 2.3.7 DO NOT use this since HID is supported in newer version of Android. Dec 28, 2014 Download Now
Complete User Manual Full version of the barcode scanner's user manual. It may includes other barcode scanner model's setting content which it might not applied this particular model. Dec 28, 2014 Download Now
Wireless Barcode Scanner Connection Guide More detail on how to pair other devices. Dec 28, 2014 Download Now
Utility Tool 5.04 Utility tool to config barcode scanner. It's NOT recommended for new barcode scanner user. You don't need this tool to operate the barcode scanner. Sept
6, 2017
Download Now
SM3 VCP Driver The driver is for VCP (Virtual COM Protocol), if you don't know what it is, please do NOT install it. 99% of users use the barcode scanner via HID interface, HID works like a keyboard, a scanned barcode's value is input to where the cursor is, and you don't need driver to use the HID interface. Oct
8, 2013
Download Now
Factory Reset Barcodes This pdf document contains the necessary barcodes in order to perform a full factory reset. This would be most helpful for troubleshooting your barcode scanner. Sep 9, 2018 Download Now
Intercharacter Delay Barcodes In some cases, your host device may not pick up all of the characters that were scanned using your barcode scanner. The most common cause for this is because the barcode scanner is sending data faster than the speed in which the host device can read it. To remedy this issue, download the "Intercharacter Delay Barcodes" sheet and our recommended speed is "16mS" to ensure that all of the data properly transfers into to your host device. Click Here for a video guide on how to set your Intercharacter Delay. Nov 14, 2018 Download Now


Play Video - Pairing Your Bluetooth Barcode Scanner with your Android device
This video guide will walk you through how to get started using your wireless Bluetooth barcode scanner. We go over pairing your Bluetooth scanner to your Anroid device!

Play Video - Pairing Your Bluetooth Barcode Scanner with your iOS Device
This video guide will walk you through how to get started using your wireless Bluetooth scanner. We go over pairing the device as well as finding solutions to common issues such as the iOS device not receiving the barcode data properly and being able to easily switch between on screen display typing and scanning.
