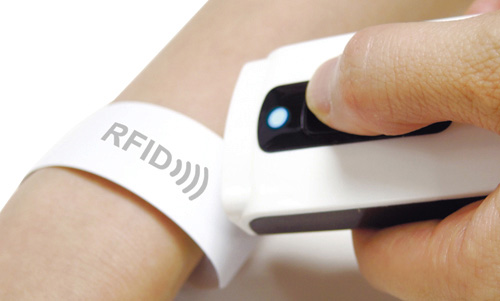

THE WORLD'S MOST COMPACT NFC RFID READER
This compact, high quality NFC reader delivers excellent performance. At only 4 inches in length, it is capable of high-speed scanning and error-free decoding of HF or NFC tags and cards.
*SAVE 40% OFF THE AS10! LIMITED TIME OFFER!* SALE ENDS IN:

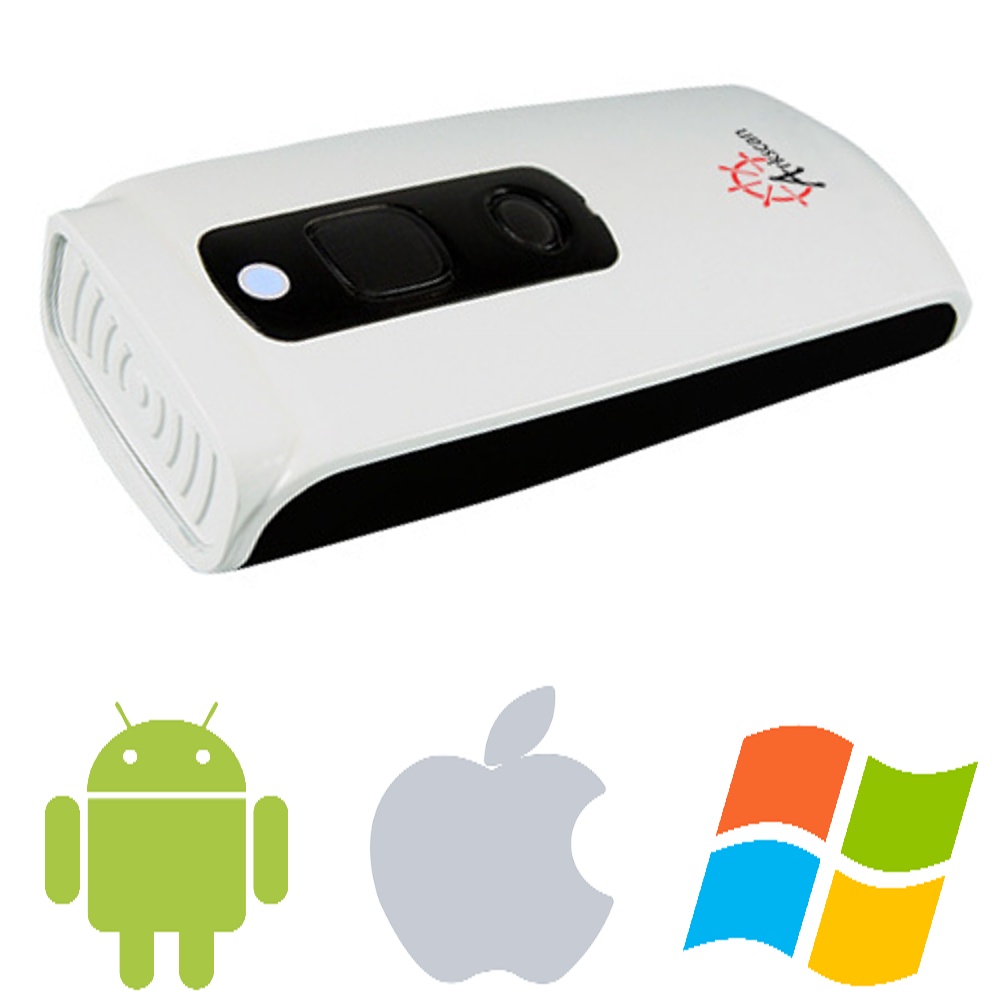

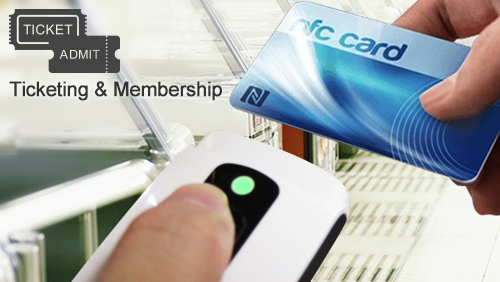

Arkscan® AS10 features the smallest pocket mobile NFC reader and one perfect accessory for mobile RFID application. AS10 Mobile NFC Reader is designed to lead the new trends of NFC and smartphone-based applications such as Access Control, Electronic Ticket, Membership Management, Asset Tracking, Equipment Inspection, NFC transaction and a variety of RFID applications.
| Performance | |
| Frequency
|
13.56MHz |
| Standard | ISO 15693 ISO 14443 |
| Memory
|
2 MB |
| Read Mode | Single read |
| Reading Distance
|
ISO 14443: 0~25mm
ISO 15693: 0~50mm |
| Physical Characteristics | |
| Dimension | W42.5×L102×H21.5 mm |
| Weight | 70g |
| Color | White |
| Material | PC |
| Cable | 1.5M (Micro USB Cable) |
| Trigger | Scan Button iOS Hotkey |
| Indicator | Buzzer, LED, Vibrator |
| Power | |
| Operation Voltage | 3.7 VDC |
| Working Current | < 250mA |
| Standby Current | < 75mA |
| Idle Current | < 1mA |
| Battery | 3.7 V, 1000mAh, Lithium Battery |
| Number of Scan (per full charge) | > 10,000 scans (1 scan/ 5 secs, Bluetooth connected) |
| Connectivity | |
| Radio | Bluetooth 2.1 + EDR (Class2) |
| Range | 10m (line of sight) |
| Interface/ Profile | BT (SPP) BT (HID) USB (HID) USB (VCP) |
| User Environment | |
| Operating Temperature | -10~55°C |
| Storage Temperature | -20~65˚C |
| Humidity | 0%~95%RH (Non-condensing) |
| Drop Durability | 1.5M |
| Sealing | IP55 |
| Regulatory | |
| EMC | FCC Class B, CE, TELEC |
| ESD | Functional after 4KV contact, 8KV Air discharge |
| Safety | RoHS 2.0, WEEE |
| Description | Notes | Date | Download |
| AS10 Quick Guide User Manual | Quick guide | Dec 28, 2014 |  |
| SM3 VCP Driver | Driver to connect the RFID / NFC Utility tool via USB cable | Nov 20, 2015 | |
| RFID/NFC Utility 2.03 | For firmware 2.02, please check product label for firmware version | Aug 20, 2017 | |
| RFID/NFC Utility 1.03 | For firmware 1.14, please check product label for firmware version | Aug 20, 2017 | |
| AS10 User Manual | Full version user manual for AS10 RFID NFC reader. | Aug 20, 2017 | |
*In order to switch between different interfaces, such as BT-HID, BT-VCP, Memory, USB-HID, USB-VCP or Wireless Dongle, you need to install the SM3 VCP Driver, and RFID / NFC Utility tool to make the change.
In this video, we briefly go over how to easily pair your AS10 NFC RFID Reader or AS20 UHF RFID Reader to your smartphone or tablet. We over both iOS and Android operating systems.
