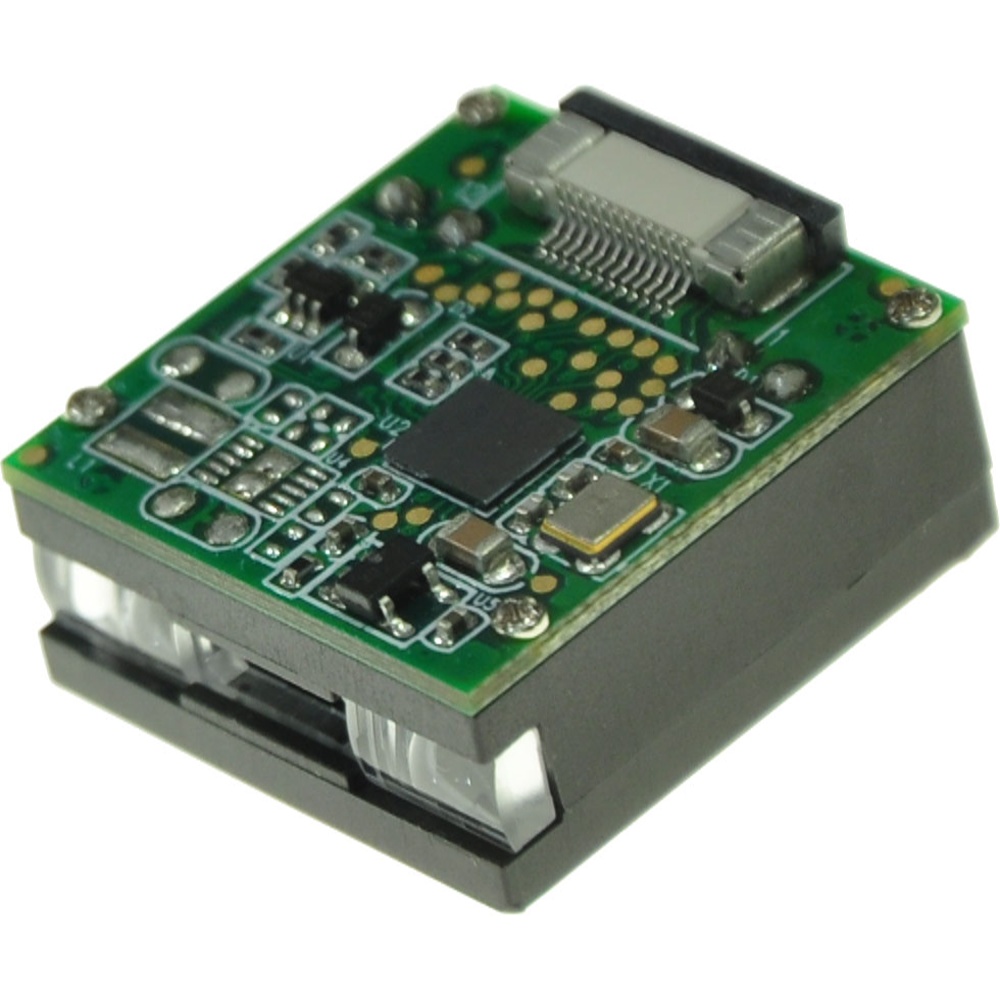

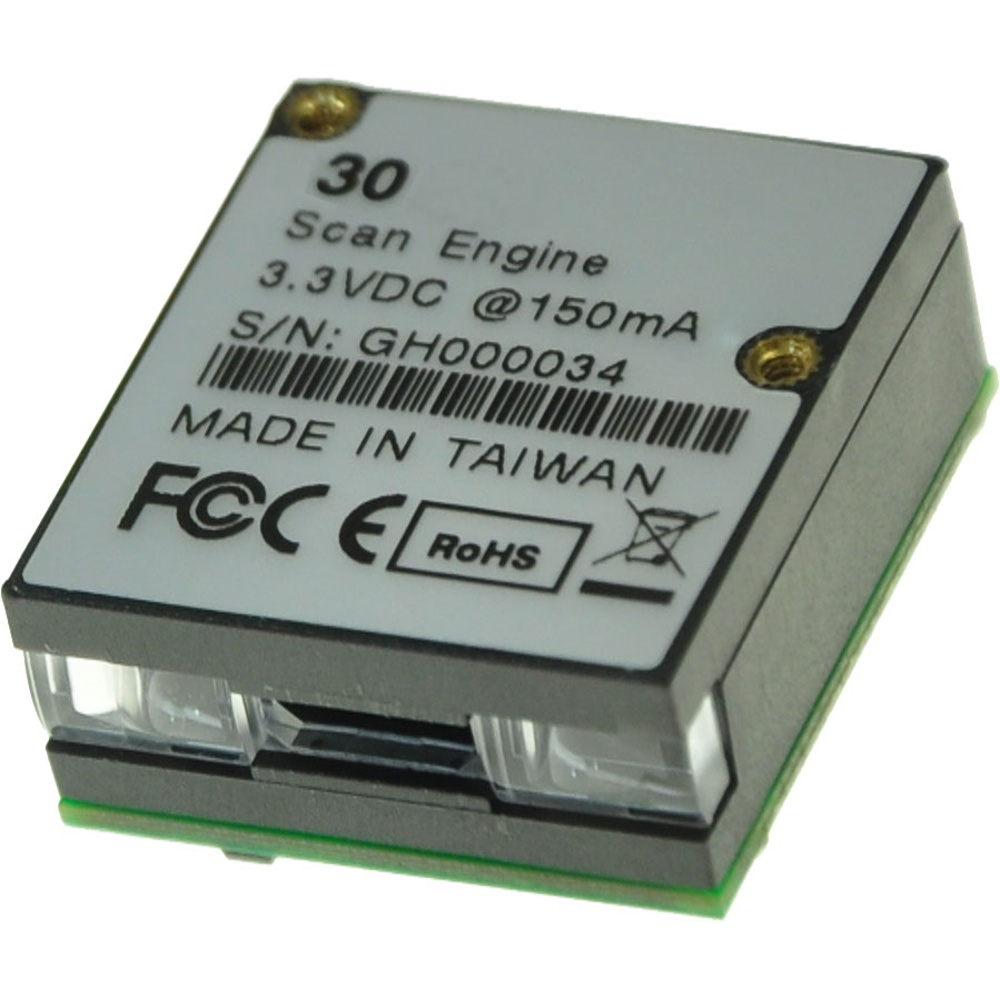

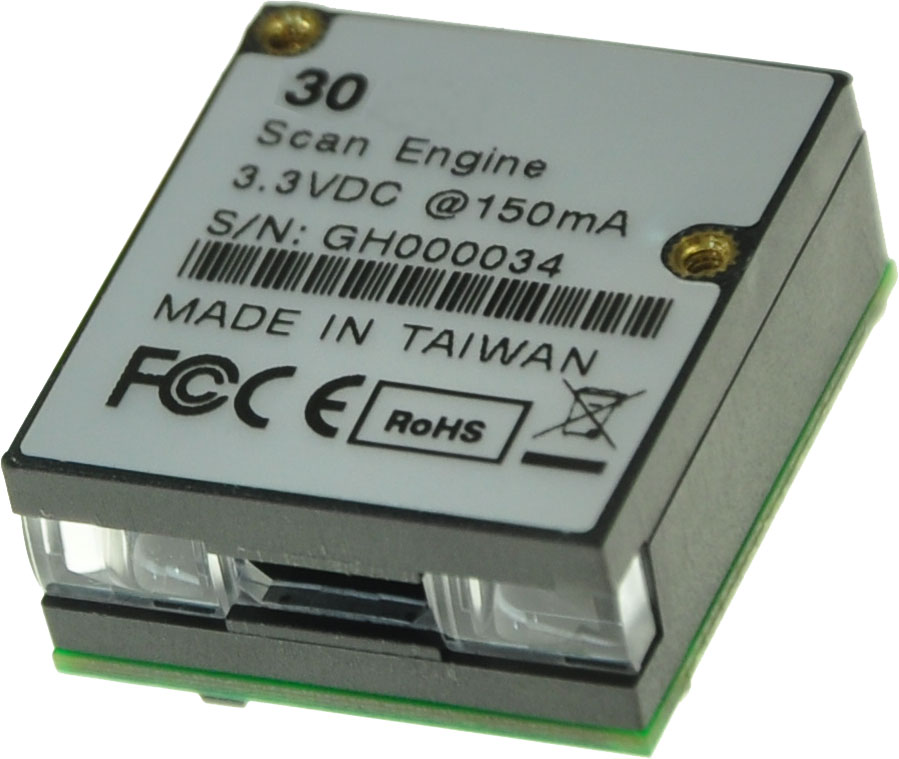

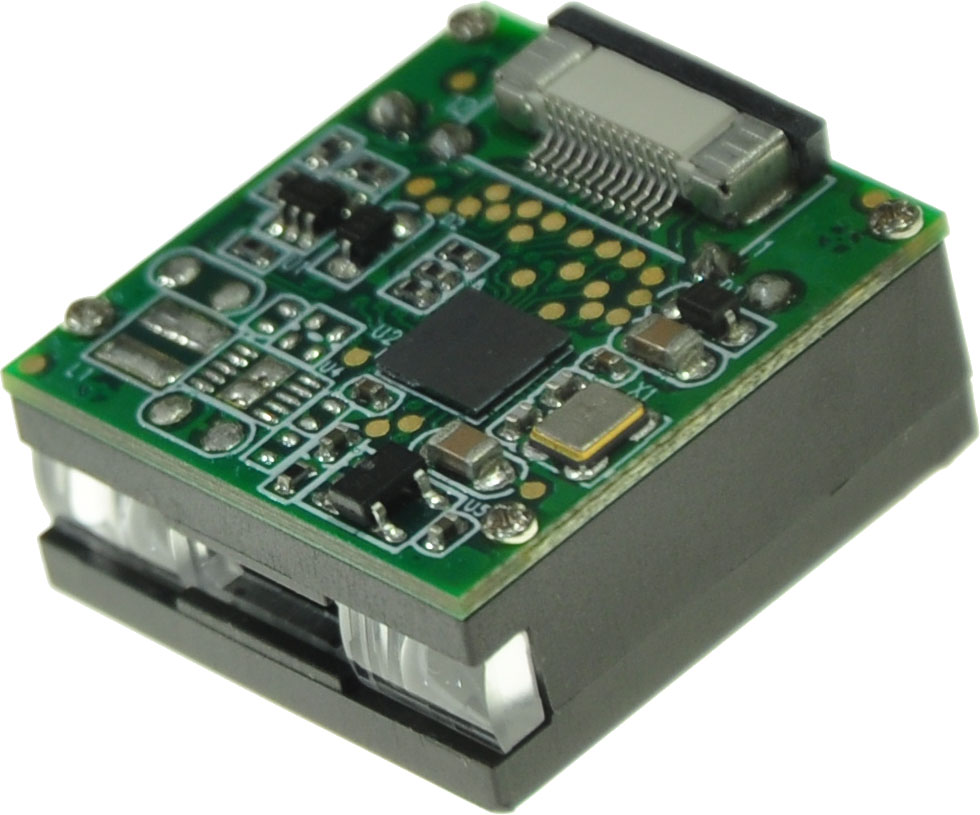

Engine30 Mini Barcode Scanner Engine

Engine30 scan engine delivers user the best scanning performance from a minimal form factor. With the ability to scan all 1D barcodes from longer distance as well as 3 mil high-density barcodes, Engine30 is ideal for scanner integration in both portable and fixed devices such as smart phone, tablet PC, industrial PDA, lottery kiosk, access gate and more.
Engine30 provides a maximum reading distance up to 52cm in depth and a field of view of 20cm in width. With the ability to read 3 mil (0.075mm) barcodes, the Engine30 is also optimal for applications using high-density barcodes on limited space which is commonly found in manufacturing, automotive, electronics, and telecom. Engine30, with enhanced optical design and latest decode algorithm, virtually scans all 1D barcodes on any surface, either paper-based label or mobile phone display. With Engine30 integrated into mobile device, users may expand their business into many new applications such as eCoupon, eTicket, Digital ID cards and mobile payments. Engine30 enhances design flexibility by offering various output interfaces with USB HID,USB VCP and UART and enabling the user to easily configure the reading modes and scanner settings according to preference. The flash memory of Engine30 serves as a flexible and upgradeable provision for additional requirements or performance enhancement and extends the product's lifecycle as well. Engine30 automatically adjusts its parameters for optimal scanning performance which provides the freedom to scan barcodes from under complete darkness to direct sunlight. With configurable scan rate between auto-adaptive mode and fixed mode, Engine30 is ideal for both high-speed scanning applications and smart devices which require more motion tolerance and ambient light immunity. A set of commands is supported to enable the host device to configure all the functions of Engine30 thereby fulfilling dynamic configurations demand. To help user grasp and understand the bi-directional communication more quickly, the Windows®-based BEO® configuration utility is provided as a user-friendly platform where testing Engine30 can be done in a much easier way. B100 Demo Kit (sold separately) provides the software and hardware tools required for testing Engine30 before integrating it into the host device. The kit contains software utility, interface cables and B100 Multi I/O board. Due to its small size, B100 is also suitable for being installed inside the host system as an interface board connecting Engine30 to the host device.
  1. Maximum reading distance up to 52cm in depth and a field of view of 20cm in width
  2. Enhanced optical design and latest decode algorithm, virtually scans all 1D barcodes on any surface, either paper-based label or mobile phone display
  3. Integrated into mobile device, users may expand their business into many new applications such as eCoupon, eTicket, Digital ID cards and mobile payments
  4. Enhances design flexibility by offering various output interfaces with USB HID,USB VCP and UART and enabling the user to easily configure the reading modes and scanner settings according to preference
  5. Flash memory serves as a flexible and upgradeable provision for additional requirements or performance enhancement and extends the product's lifecycle
  6. Automatically adjusts its parameters for optimal scanning performance which provides the freedom to scan barcodes from under complete darkness to direct sunlight
Optical & Performance
Light Source 625nm visible red LED
Sensor Linear Image Sensor
Scan Rate 400 Scans/ sec
Resolution 3Mil/ 0.075mm
Scan Angle 41°
Print Contrast 30%
Width of Field 200mm (13Mil Code39)
D.O.F (@ 800 Lux)

Code 39
3 Mil  : 60 ~ 90 mm
4 Mil  : 60 ~ 120 mm
5 Mil  : 50 ~ 160 mm
10 Mil: 35 ~ 340 mm
15 Mil: 50 ~ 520 mm
UPC/EAN
13 Mil: 35 ~ 400 mm

Physical Characteristics
Dimension W20.6 x L22.5 x H11.2 mm
Weight 3.3g
Color Black
Material PC
Connector 12pin ZIF (pitch=0.5mm)

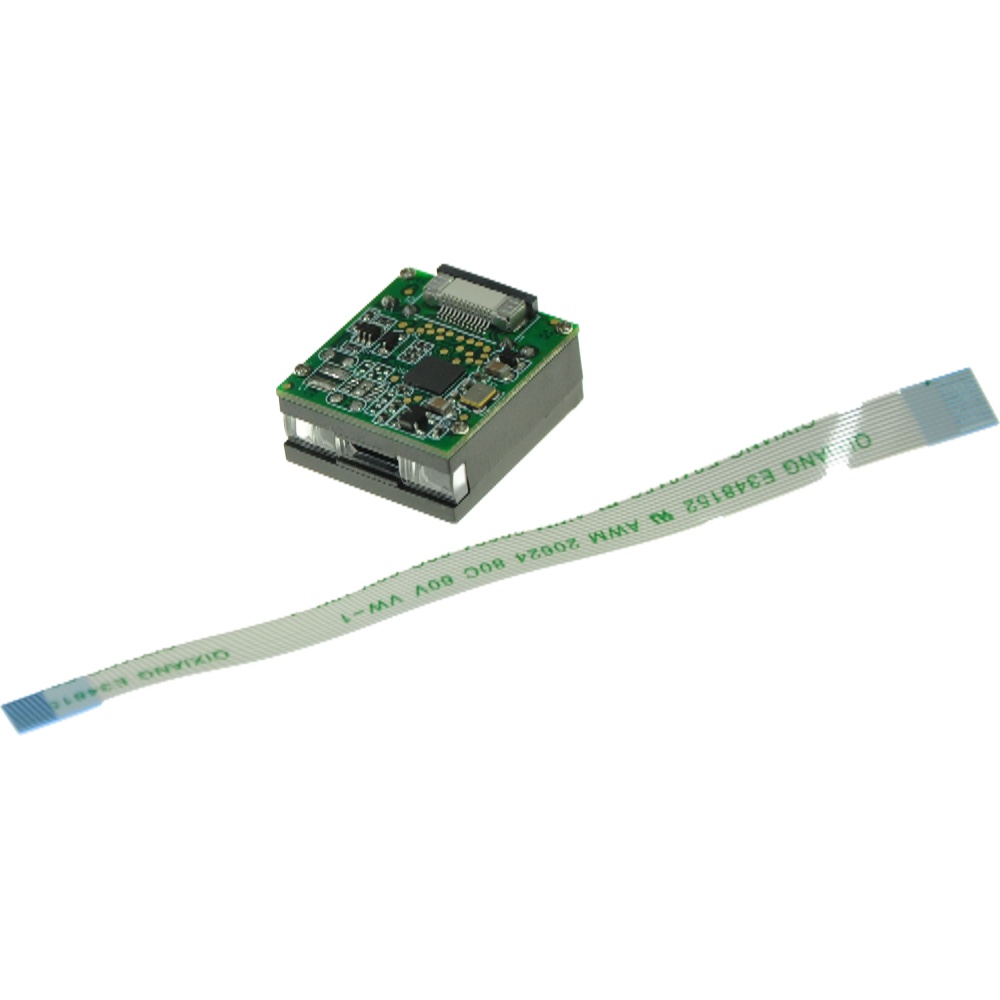

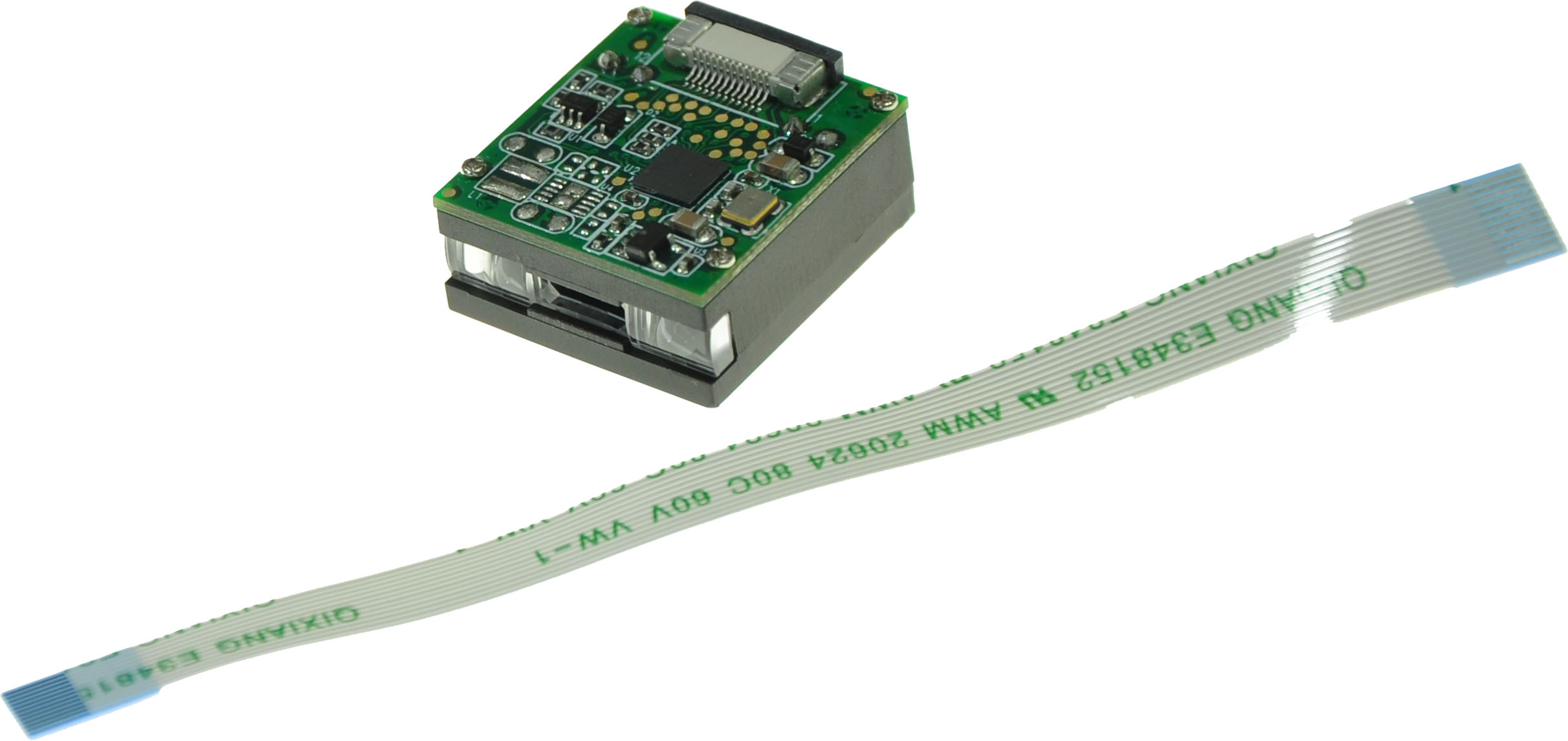

Cable 12pin flex cable (pitch=0.5mm)

Power
Operation Voltage 3.3 VDC ± 5%
Working Current < 150mA
Standby Current < 70mA
Idle Current (Sleep Mode) < 300uA

Connectivity
Interface/ Profile UART TTL
USB HID
USB VCP

User Environment
Operating Temperature -10 ~ 60°C
Storage Temperature -20 ~ 60°C
Humidity 0% ~ 95%RH (Non-condensing)
Drop Durability 1.5M
Ambient Light 60,000 Lux (Sunlight)
1D Symbologies UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar

Regulatory
ESD Functional after 4KV contact, 8KV Air discharge
(requires housing that is designed for ESD protection and stray from electric fields)
EMC FCC Part 15B Class B, CE EN55022/24/32
Safety Approval EN/IEC62471 (Exempt Group)
Environmental WEEE, RoHS 2.0
Description Notes Date Download
BEO v3.02  For Command Mode Firmware 2017-08-25
Manufacturer's Original Price: $149

Promotion Price

$99.00 each
+
Add to cart
If you are a reseller or distributor, please contact us for pricing by clicking here.
