B100 Multi I/O Board

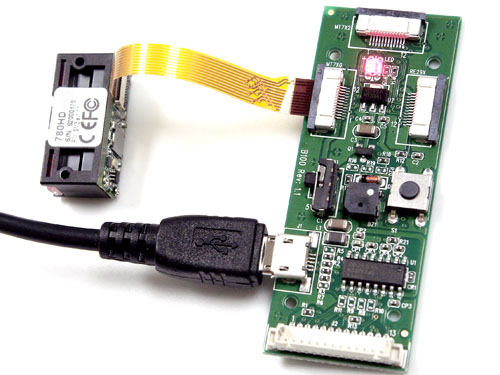

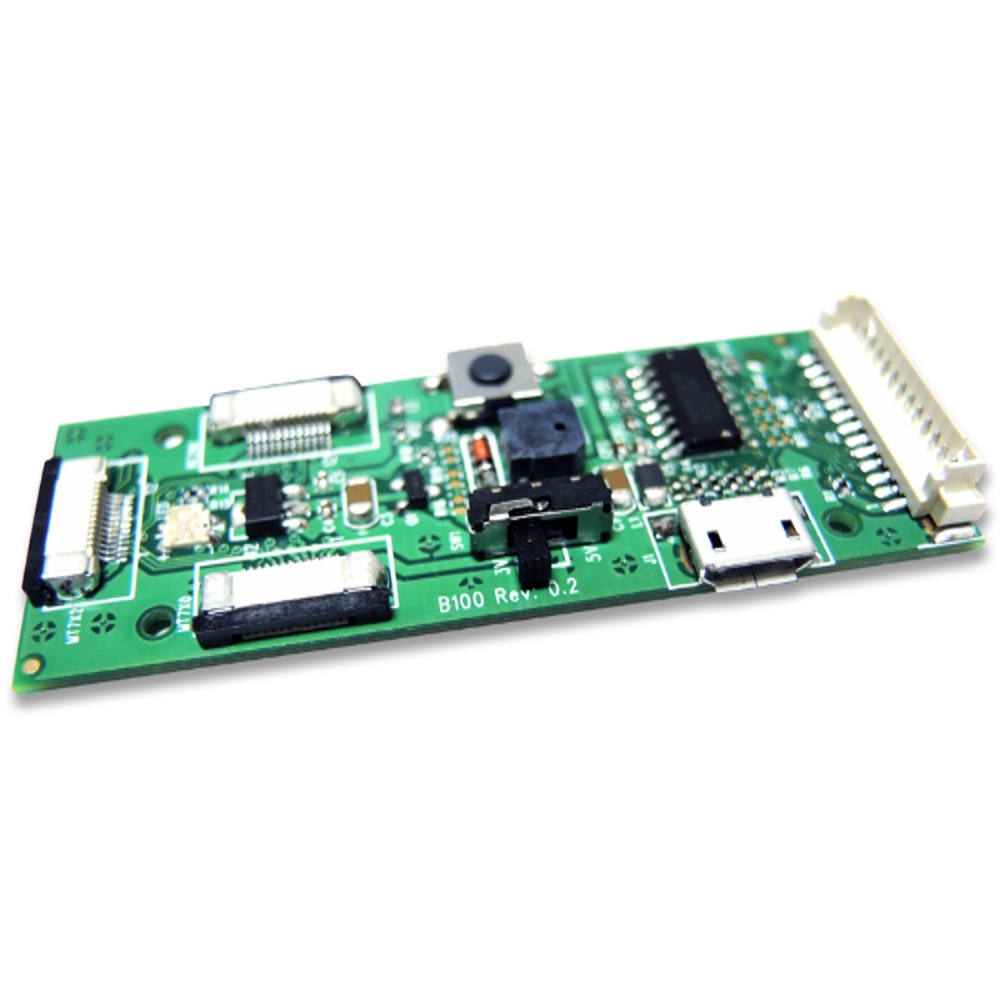

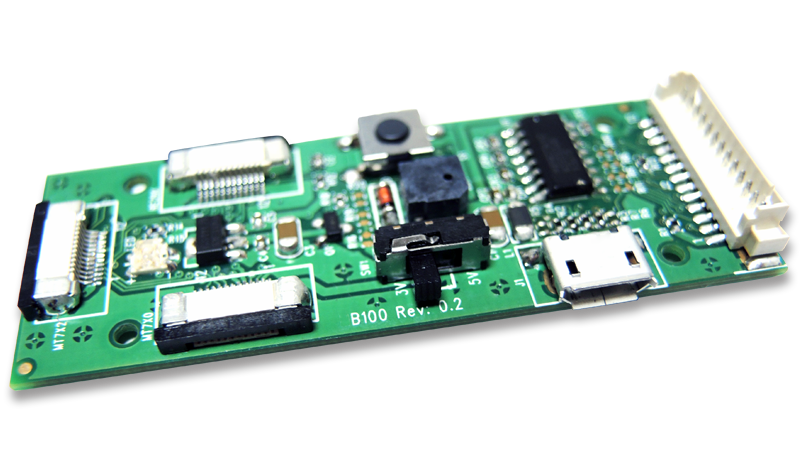

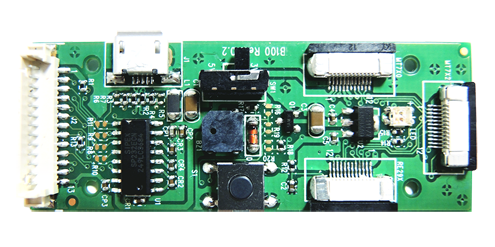

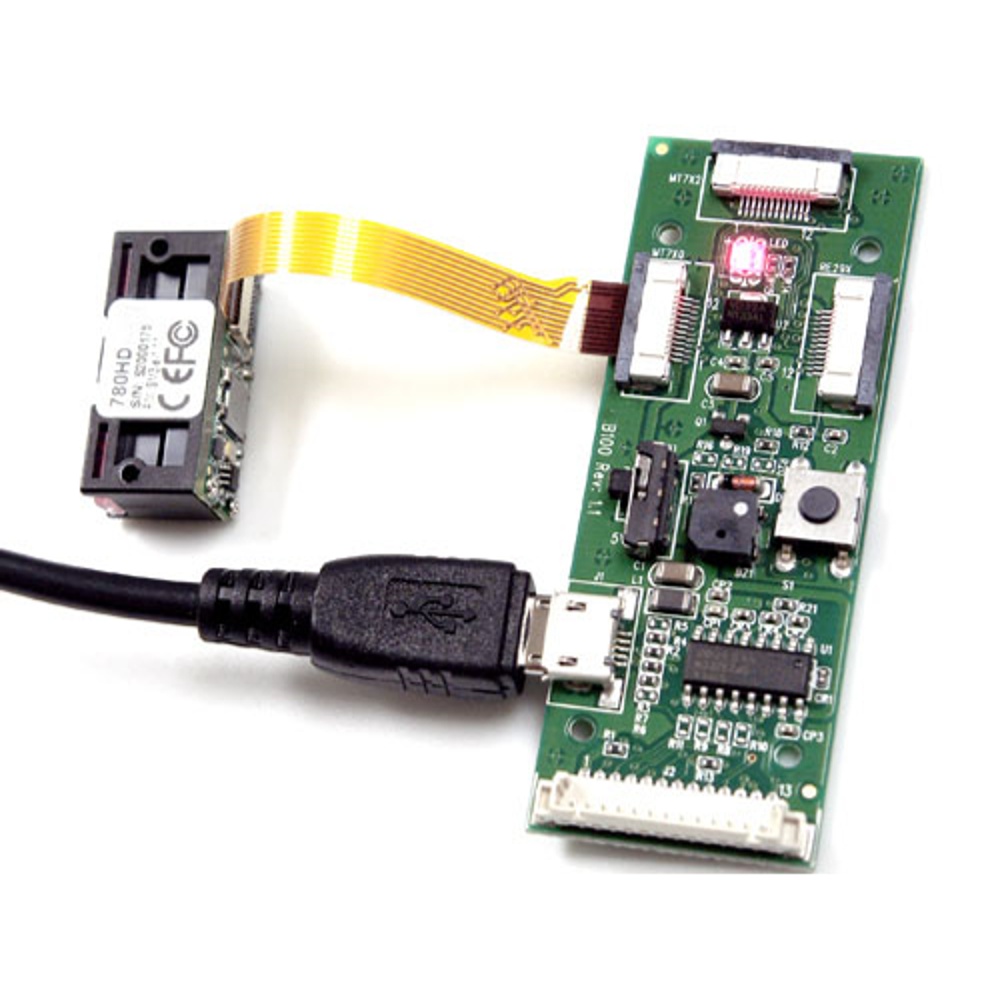

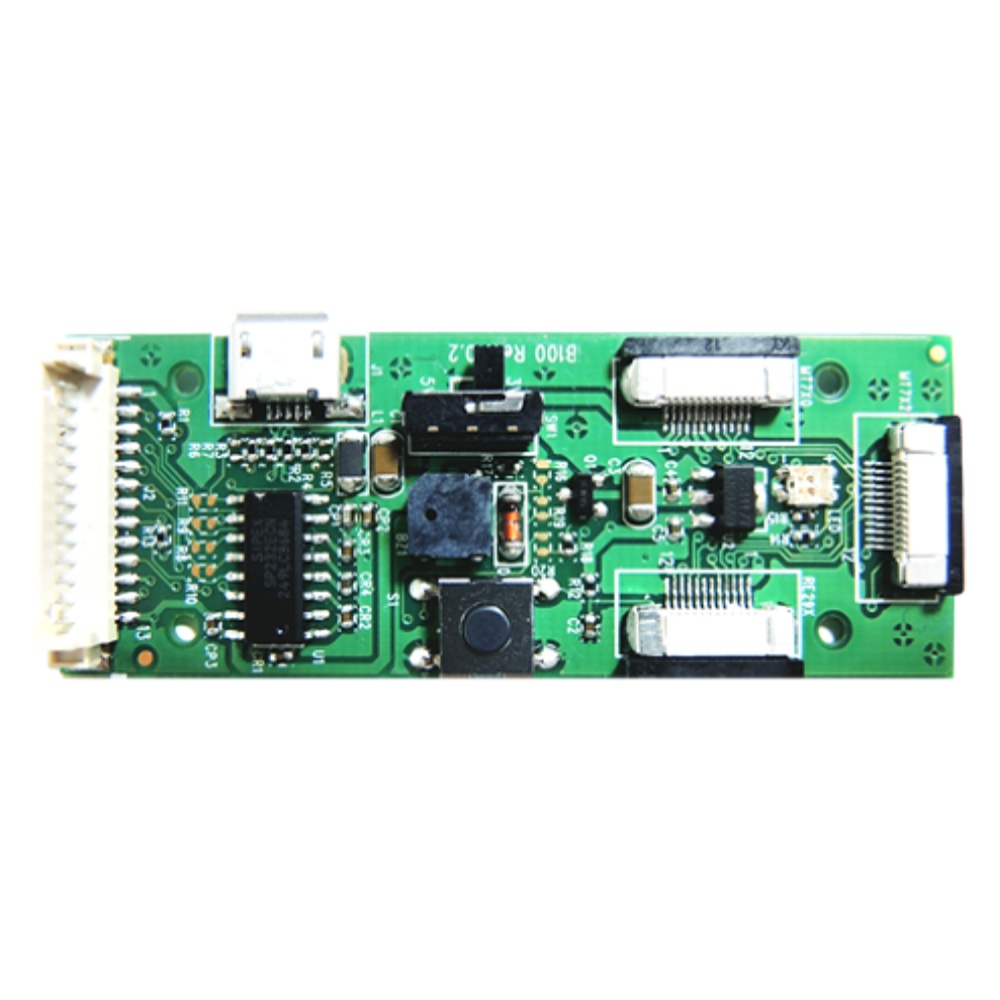

B100 multi I/O board is designed specifically to help developer test barcode scan engine before integrating it into the host device.
B100 has a compact size (23 x 61.5 x 6.5mm) and light weight (6g), B100 is also ideal for being installed inside the system housing as an interface board connecting the scan engine with the host device. Compatible with the full range of Arkscan barcode scan engines, B100 is a useful tool for developer to conduct testing and debugging with different interfaces including RS232, USB HID and USB VCP. By adjusting the switch on B100 developer can also easily change the power supply voltage from 3.3V to 5V. With multiple interface cables available and wafer connector on B100, it is much easier for developer to connect Arkscan barcode scan engine to different system platform via B100, greatly reducing the development time and cost as well as verifying a new interface board design.
  1. Compact size (23 x 61.5 x 6.5mm) and light weight (6g)
  2. Compatible with the full range of Arkscan barcode scan engines
  3. Useful tool for developer to conduct testing and debugging with different interfaces including RS232, USB HID and USB VCP.
  4. With multiple interface cables available and wafer connector on B100, it is much easier for developer to connect Arkscan barcode scan engine to different system platform via B100
Physical Characteristics
Dimension W23 x L61.5 x H6.5 mm
Weight 6g
Color Green
Material PC
Connector 13pin Wafer Connector (pitch=1.25mm), Micro USB
Cable External Y-cable, Internal Y-cable, Micro USB cable
Trigger Scan Button
Indicator LED, Buzzer

Power
Operation Voltage 5 VDC ± 5%
Working Current depends on scan engine
Standby Current < 20mA

Connectivity
Interface/ Profile RS232
USB HID
USB VCP

User Environment
Operating Temperature 0 ~ 50˚C
Storage Temperature -20 ~ 65˚C
Humidity 0% ~ 95%RH (Non-condensing)

Regulatory
ESD Functional after 4KV contact, 8KV Air discharge
(requires housing that is designed for ESD protection and stray from electric fields)
EMC/RF FCC Part 15B ClassB, CE EN55022/24
Environmental WEEE, RoHS 2.0
Description Notes Date Download
MB100 Multi I/O Board Guide v04   2016-06-24
Manufacturer's Original Price: $99

Promotion Price

$59.00 each
+
Add to cart
If you are a reseller or distributor, please contact us for pricing by clicking here.
