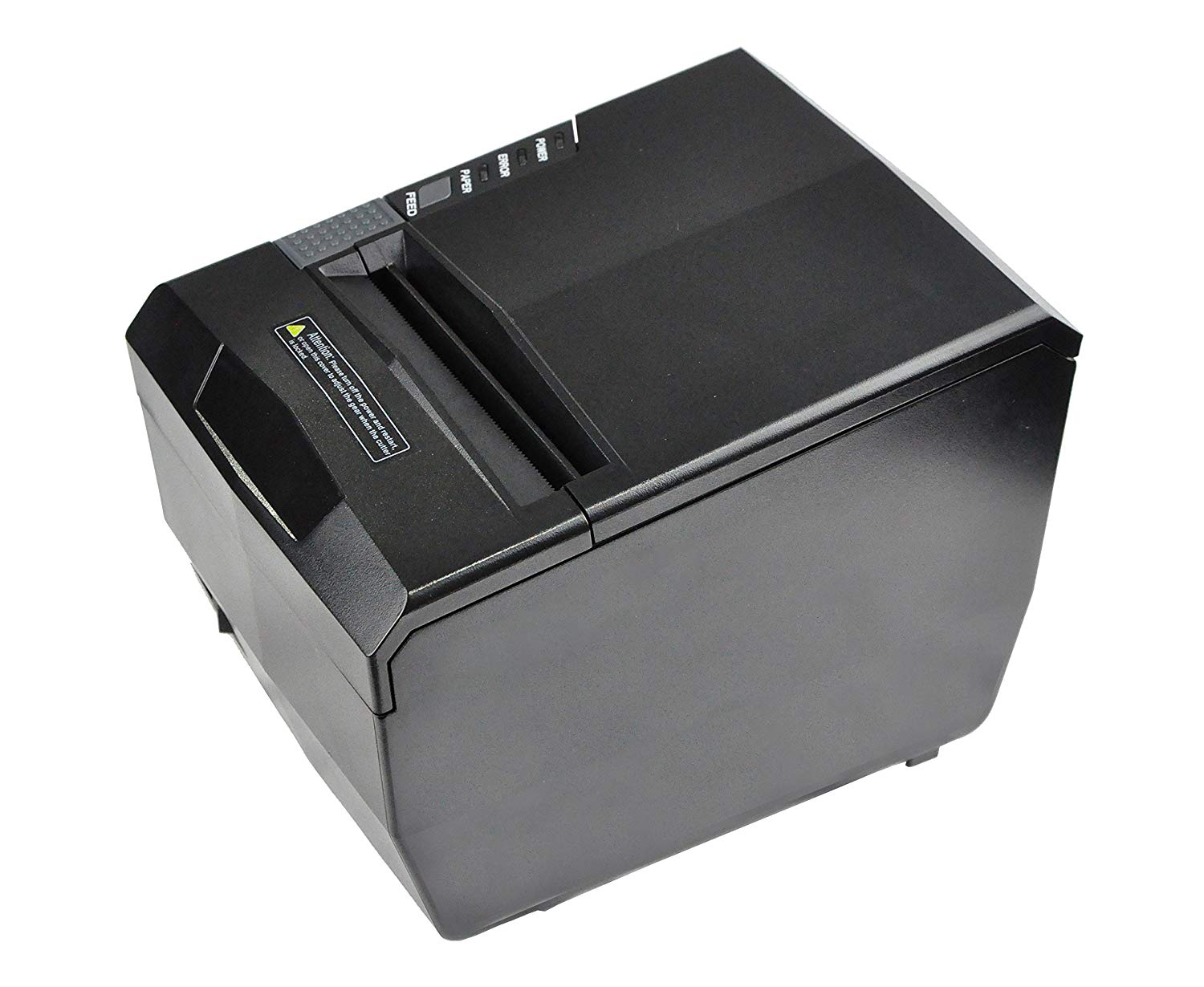

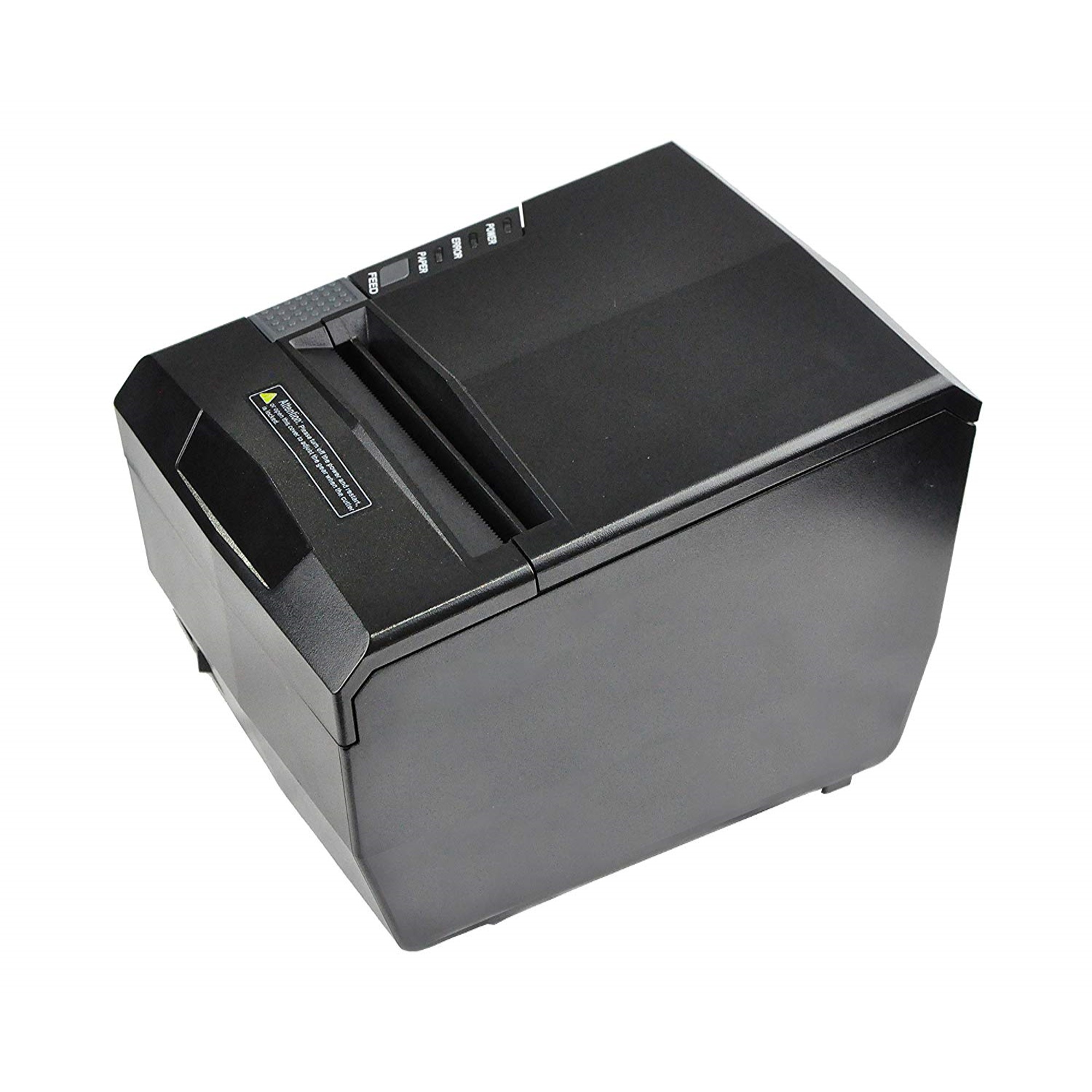

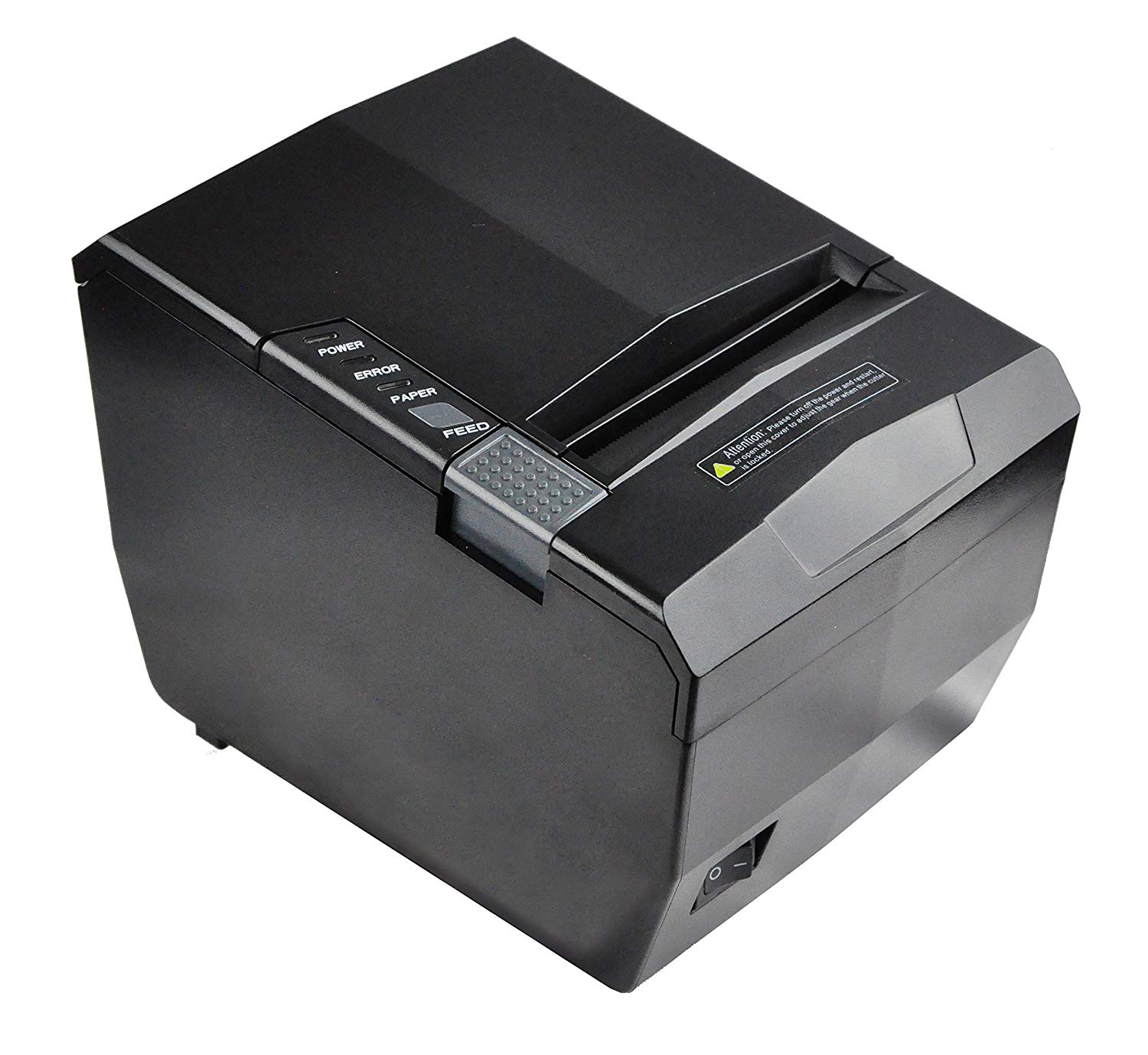

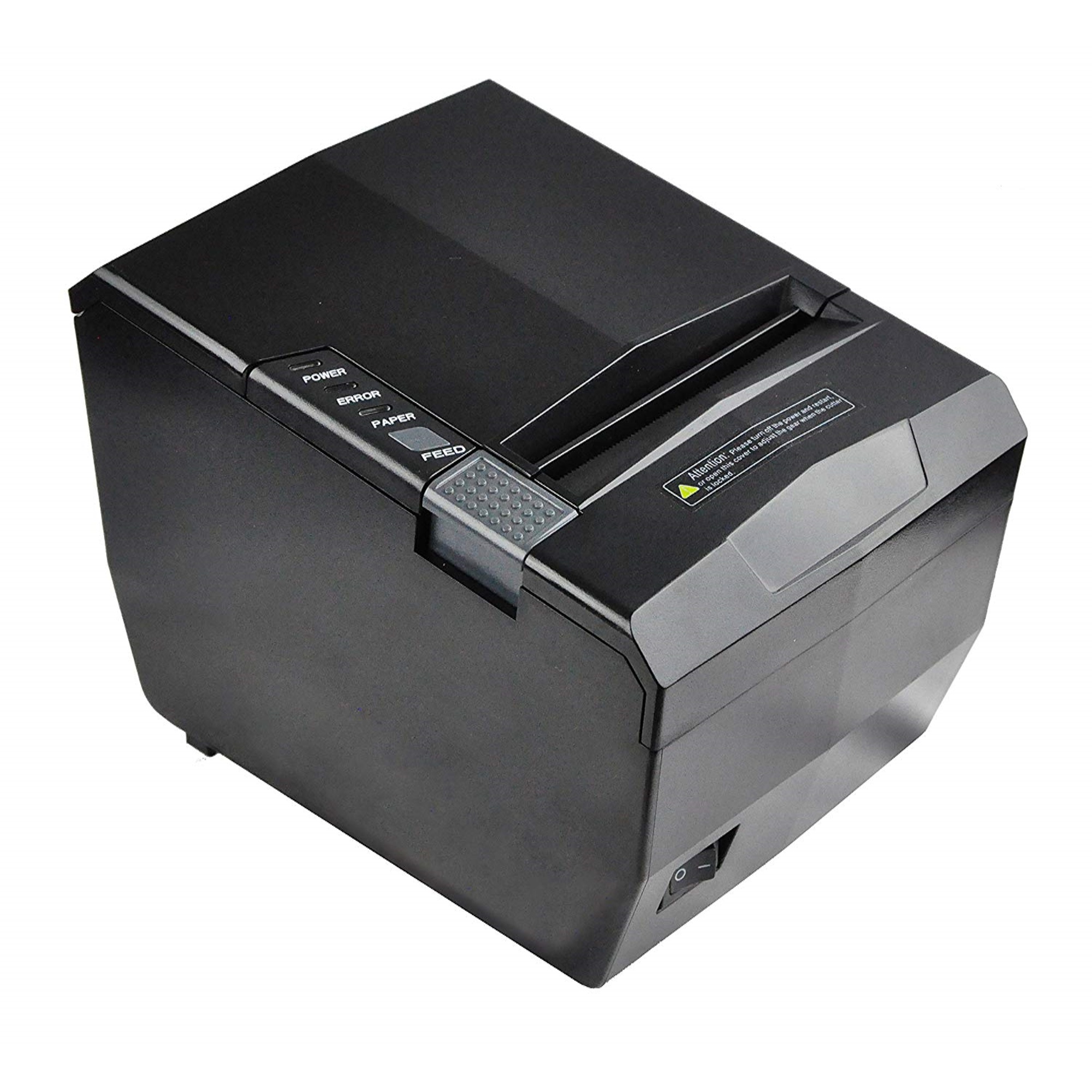

AS83USE 80mm Thermal Receipt Printer

Arkscan AS83 is an 3-in-1 80mm Thermal Receipt Printer. Two models are made for this high speed printers: AS83USE(USB + Serial + Ethernet), and AS83USW(USE + Serial + WIFI).


Low-Noise mechanism, the AS83 receipt printer performs high-speed and high-quality printing. The Multi I/O interfaces provide the printer with good connectivity to various systems or the POS solutions. It's a robust and reliable commercial product with easy maintenance and fascinating high-speed performance.
The ultra-speed, 250 mm / sec, the printing speed is capable to fulfill most of the retail and restaurant application requirements.


The Printer's 3-in-1 interface provides flexibility to meet different application needs. The interface board combines RS-232 (Serial), USB, and Ethernet/LAN functions for AS83USE; the RS-232 (Serial), USB, and WIFI functions for AS83USW where it allows you to print to the printer without a wire interface through a wireless router; both of models allow you to share a single printer by different computer devices. The printer comes with various drivers, Windows Software Driver (Windows2000/XP/7/VISTA).
Built-in data buffer for smooth printing


48Character per line and character set can be set by DIP switches Ethernet printing status monitoring, multiple connection printing and OPOS printing Various character sets
576 dots/line or 512 dots/line
Over-Heat Halt-On Protection
48 characters / line for Font A, or 64 characters / line for Font B
Character enlargement, bold, underline, line spacing and character spacing;
Compatible with ESC/POS command sets
QR code and barcode printing
Printer Dimension (WxLxH): 145 x 195x 148 mm
Emulation: ESC/POS


Note: The printer will not automatically support Android & IOS devices, unless the mobile App has been integrated with the printer, please contact your mobile App provider to verify if Arkscan's AS83 model is supported or not. If it's not supported, we provide the Android and IOS SDK to integrate with our printer from their mobile Apps. (Android & IOS Receipt Printer SDK Detail)
A demo App of the Android SDK is found on Google Play as well, please visit Google Play Store to download the Arkscan Android App for AS83 series receipt printers.

Package Includes:
Thermal Receipt Printer
Sample thermal paper roll
Power adapter
Power cord
USB Interface cable
Serial / RS-232 Interface cable
Quick Guide
Printer Driver / CD

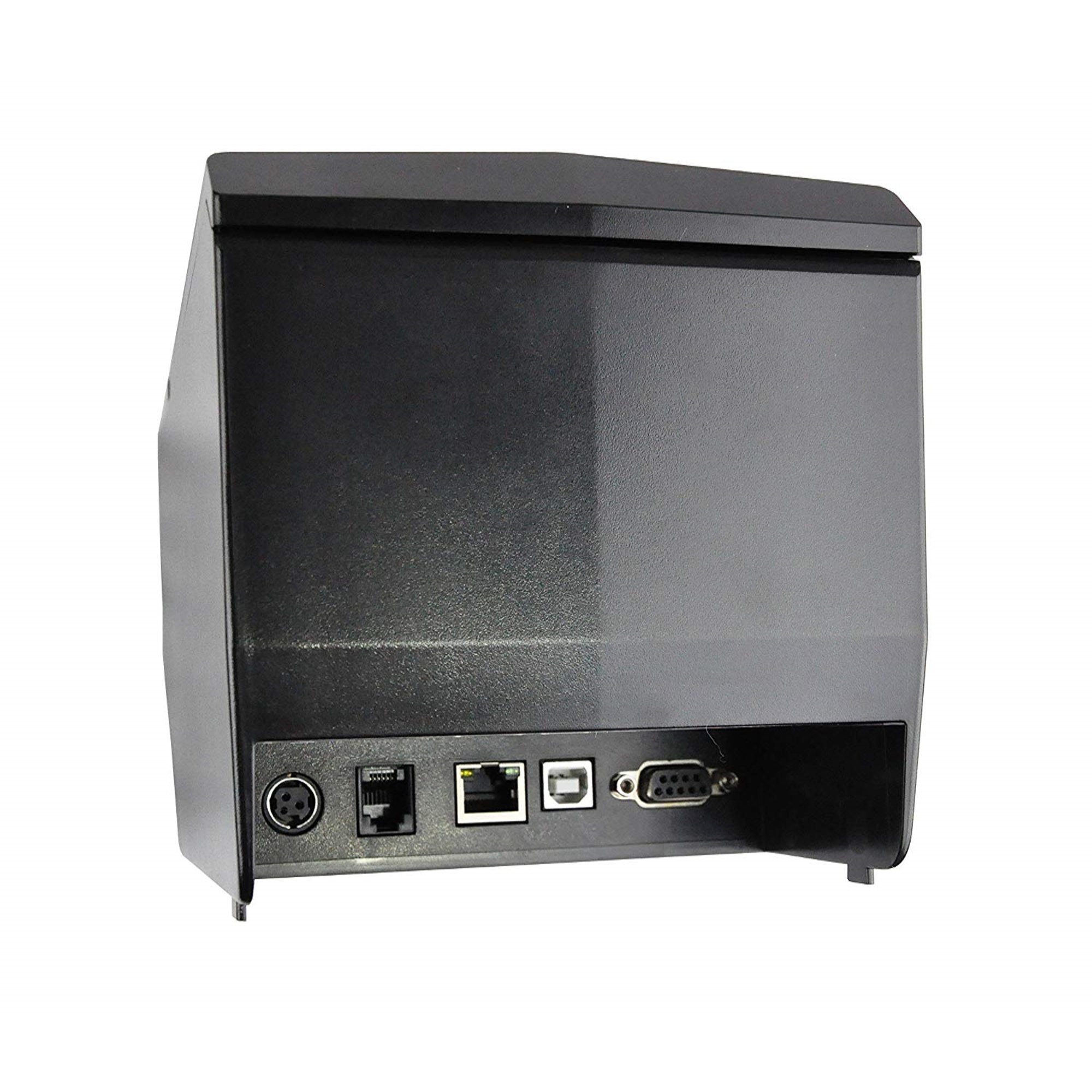

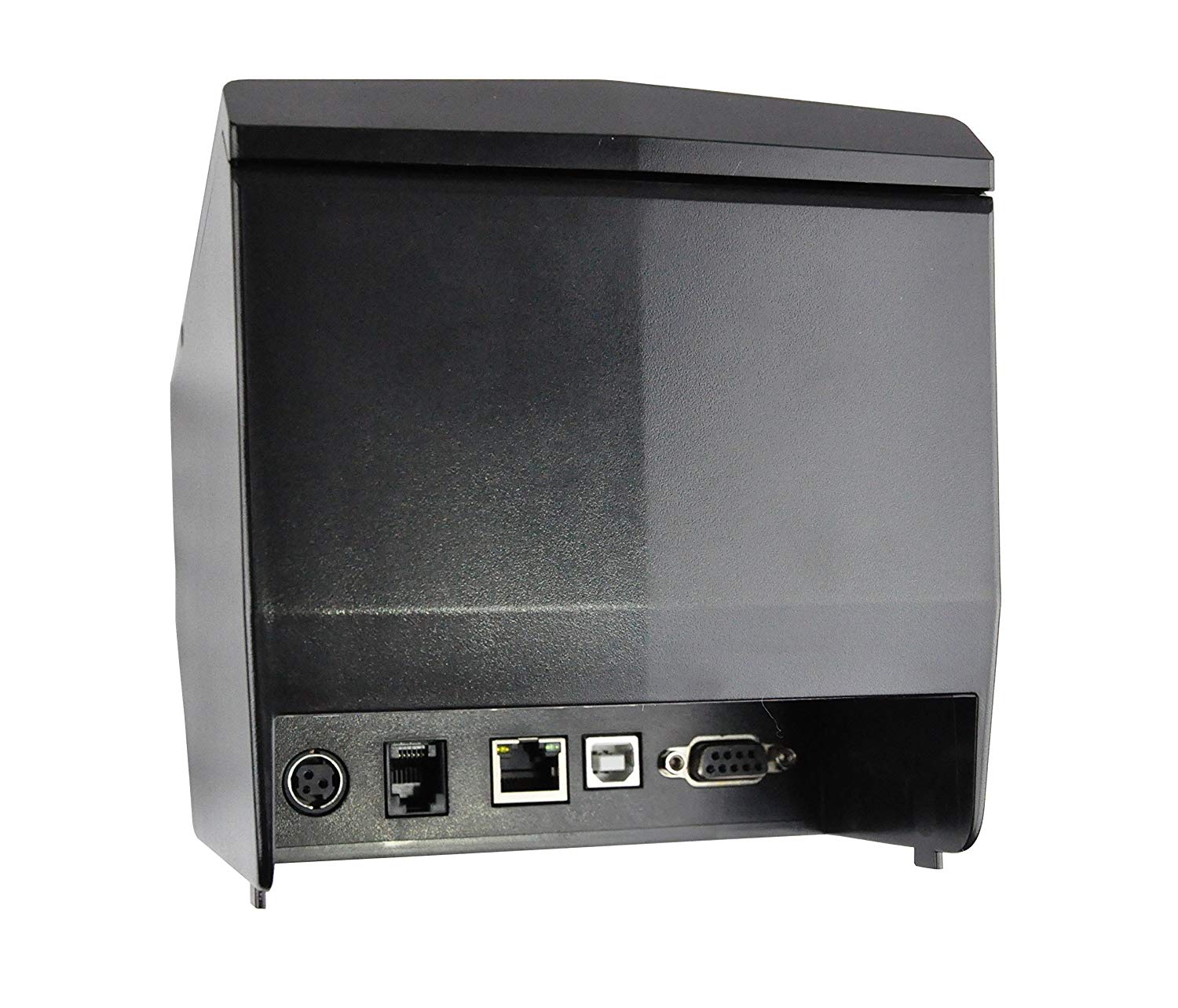

  1. 3-In-1 interfaces allows to print via USB cable, Serial cable or even share a same printer by many different computers via Ethernet/LAN.
  2. High-speed (250 mm/sec) and versatile printing, reliable and high quality printing with low working noise.

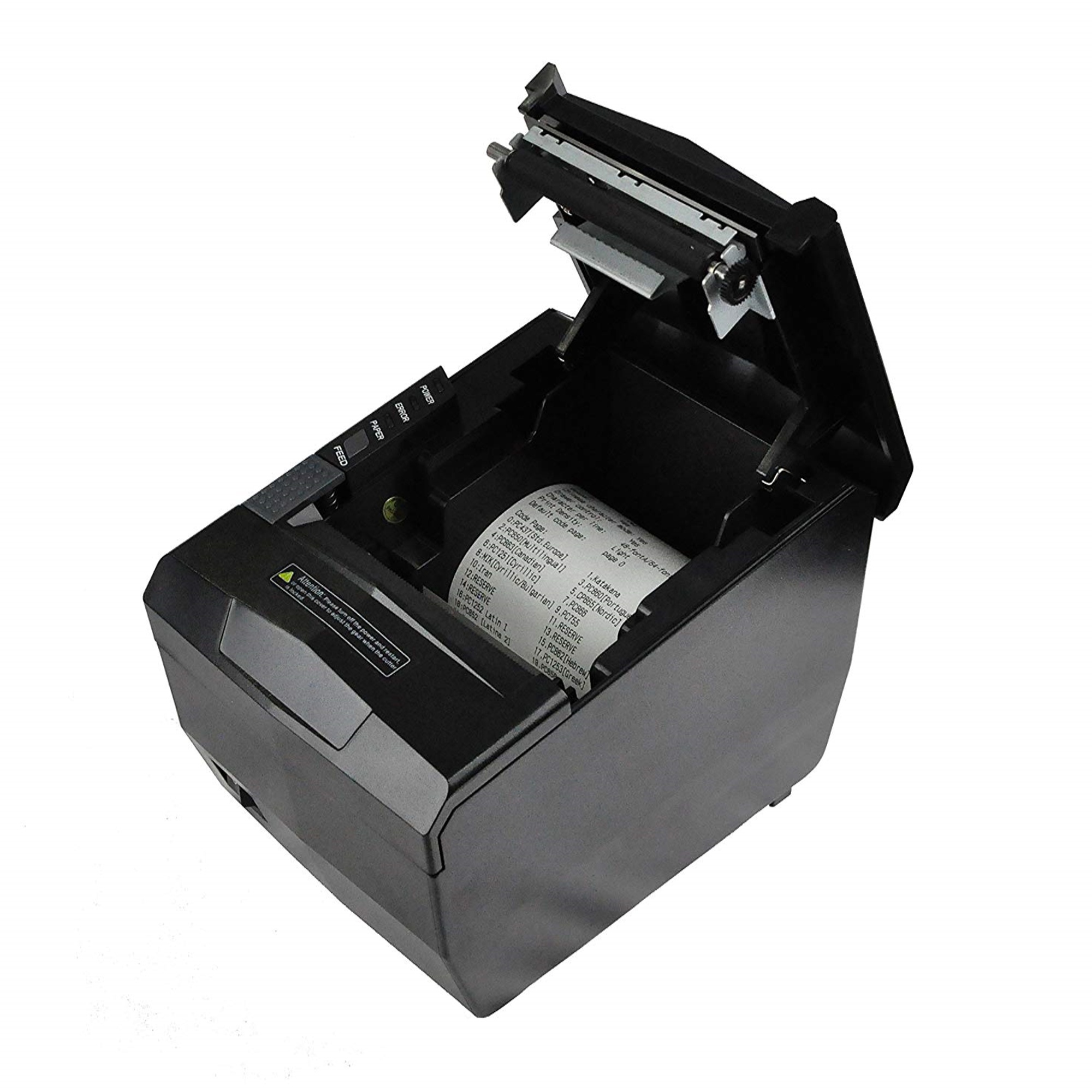

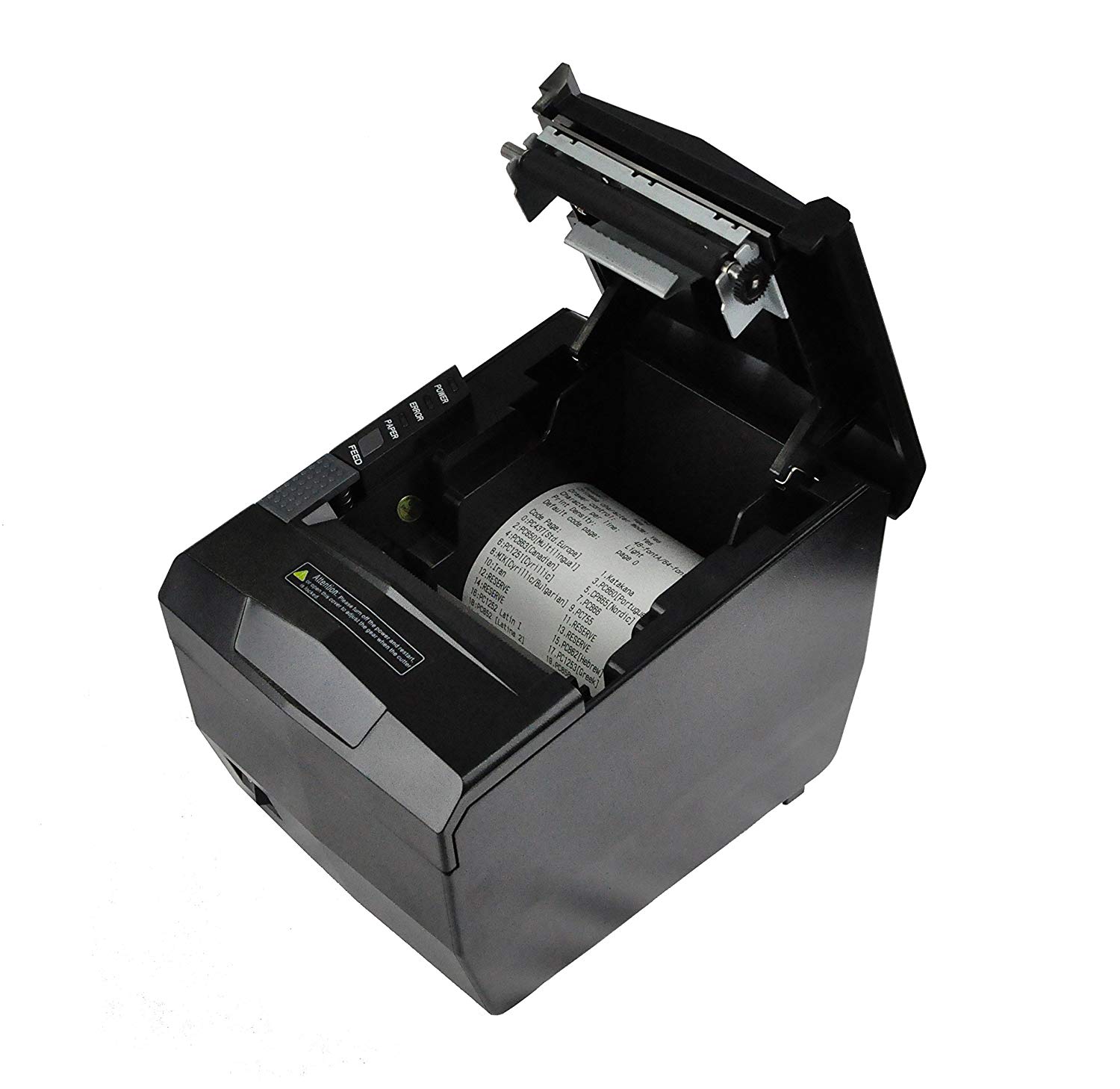

  3. User friendly, drop-and-print paper installation (drop-in paper roll or by paper roller); Paper auto-Cutter.
  4. Can print via industry standard thermal paper in size of 80mm.
  5. Support Cash drawer kick-back port (RJ-11)
Print Specification
Printing Method Direct Thermal
Printing Speed 250mm/s
Print Font

ANK:12x24,9x17 Chinese:24x24
Character per line

48-font A/64-fontB
Paper Specification
Paper Type Thermal paper (width 79.5± 0.5mm,thickness 0.06 to 0.07mm)
Paper Supply Method Drop-in paper loading
Reliability
MCBF 60 million lines
Auto Cutter 1,000,000 cuts
TPH 100km
Emulation ESC/POS
Driver Windows2000/XP/7/VISTA
Drawer Port 1 Port
Interface USB+Serial / Lan
Power Supply (Adapter) Input:AC 110V/220V, 50~60Hz
Printer Dimension (WxLxH) 145 x 195x 148 mm
Description Notes Date Download
 AS83 Everything
It has everything you need to use the printer, includes printer driver, setup tool, SDK, user manual and others; For up-to-date driver and tools, please download below Dec 28, 2014 Download Now
AS83 Windows Printer Driver
 Most up-to-date Printer Driver Nov 20, 2015 nextlink
AS83 Configuration Tool
For AS83USW and AS80USE Nov 20, 2015 nextlink
AS83 WIFI Setup Tool
For AS83USW with Quickstart installation steps Nov 20, 2015 nextlink
AS83USE Manufacturer's Original Price: $259

AS83USE Promotion Price

If you are a reseller or distributor, please contact us for pricing by clicking here.
