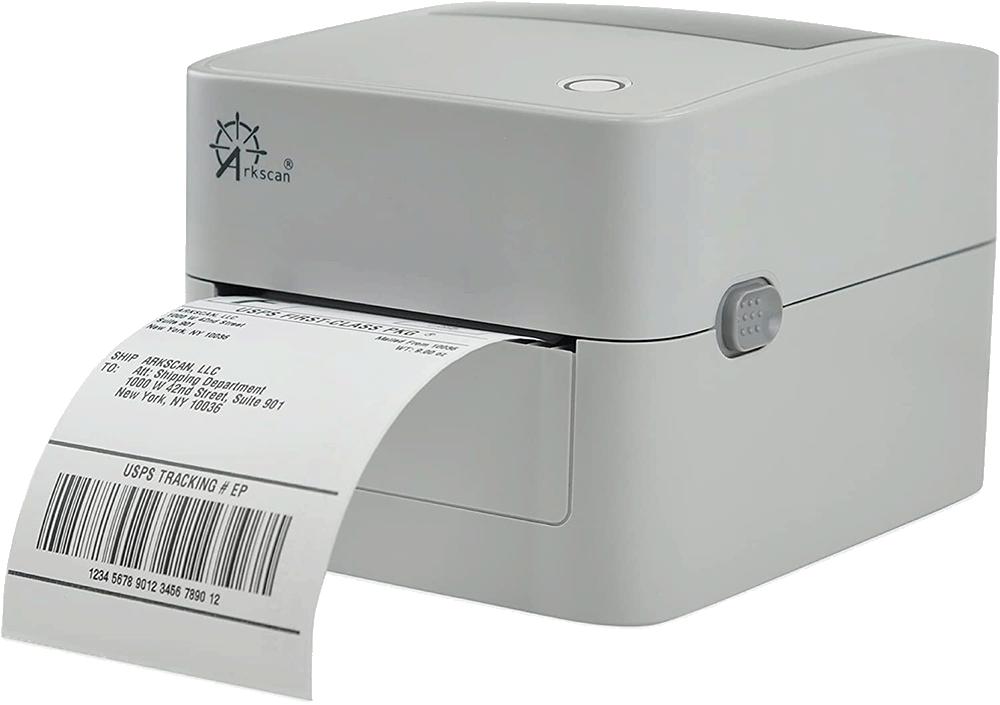

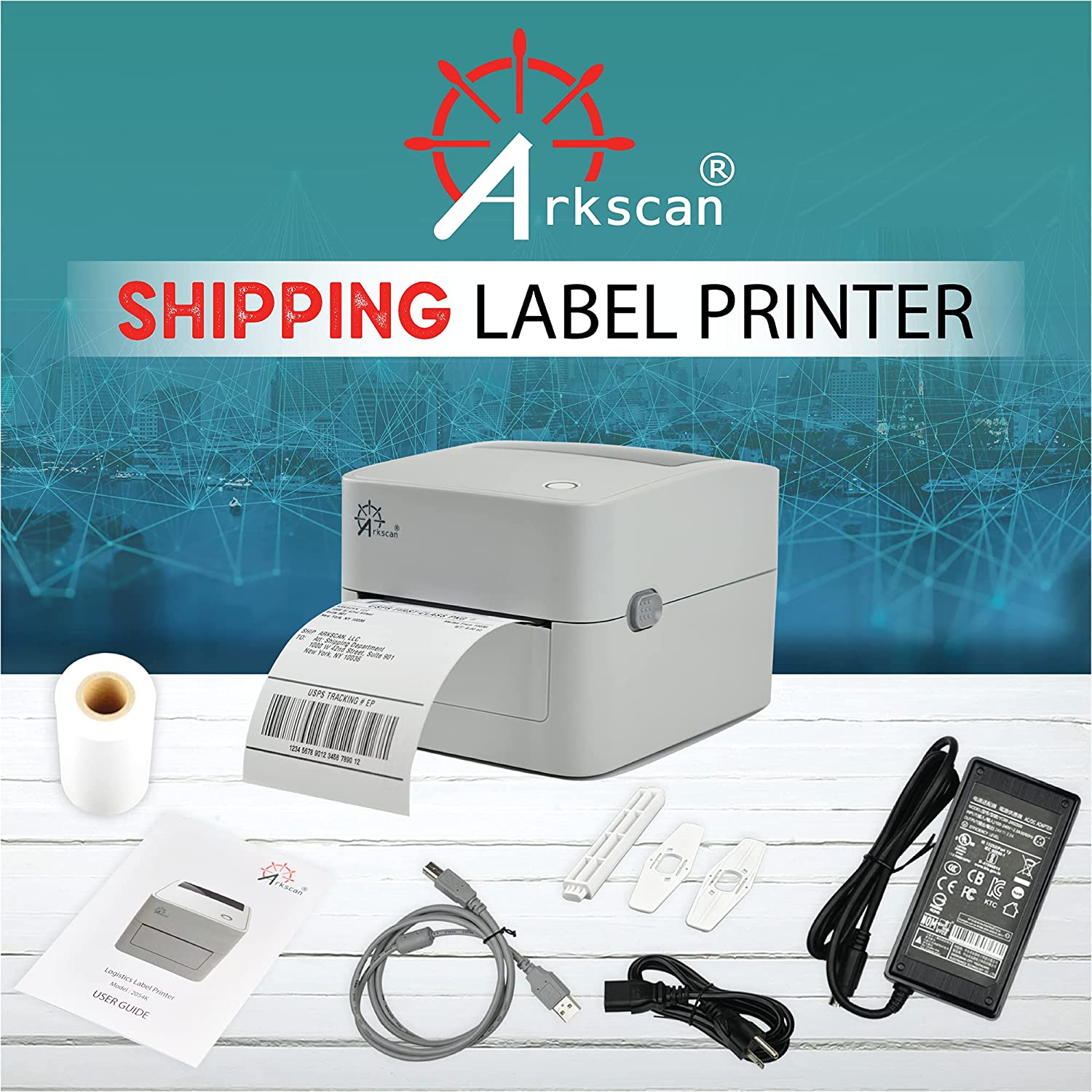

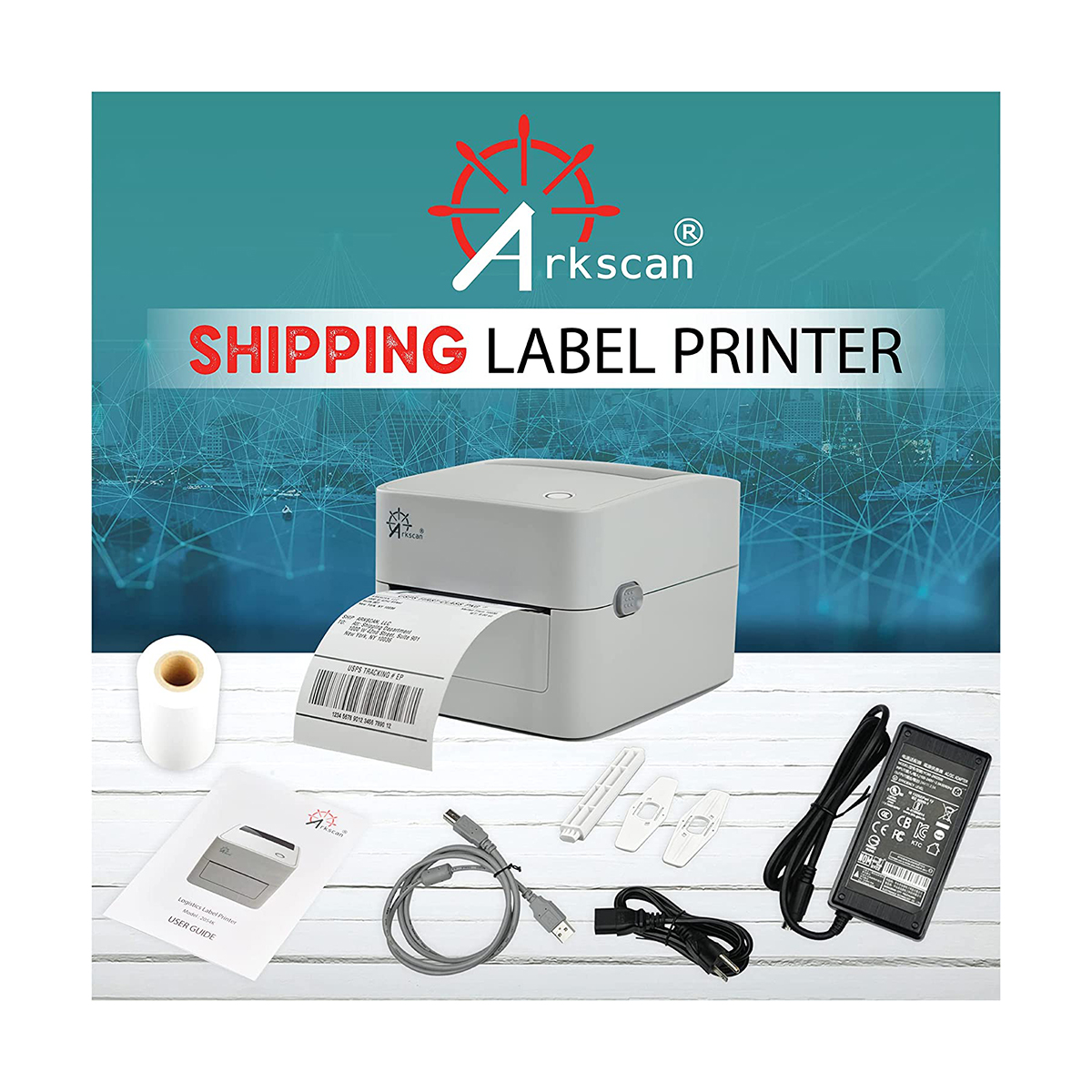

2054K USB Thermal Shipping Label Printer

Arkscan 2054K is a multi-functional thermal printer designed to print shipping labels, product labels, barcode labels, and other content labels without refilling ink and toner. This printer can be used to print out UPS, USPS, FedEx, and other shipping labels. Supports Windows, Mac, and Chromebook.

Difference from 2054A Model:

The 2054K's are our newest model of printer and feature upgraded hardware and firmware compared to the 2054A. The 2054K model also introduced Bluetooth, WiFi, and Auto-Peel features on certain versions. Both the 2054A and the 2054K have the same specifications in regards to print quality and types/sizes of labels they can print.

  1. Print shipping labels for Amazon Seller Merchant Fulfillment, Amazon FBA, Amazon FNSK, EasyPost, EasyShip, eBay, Endicia Dazzle, Etsy, Fedex Ship Manager, Fedex website, Inventory Lab, PayPal, Poshmark, ShippingEasy, Shippo, ShipStation, ShipWire, ShipWorks, ShopGator, Shopify, Stamps Desktop, Stamps website, StockX, UPS WorldShip Desktop, UPS website, USPS website, XPSship, Endicia Dazzle, Pirateship and more.

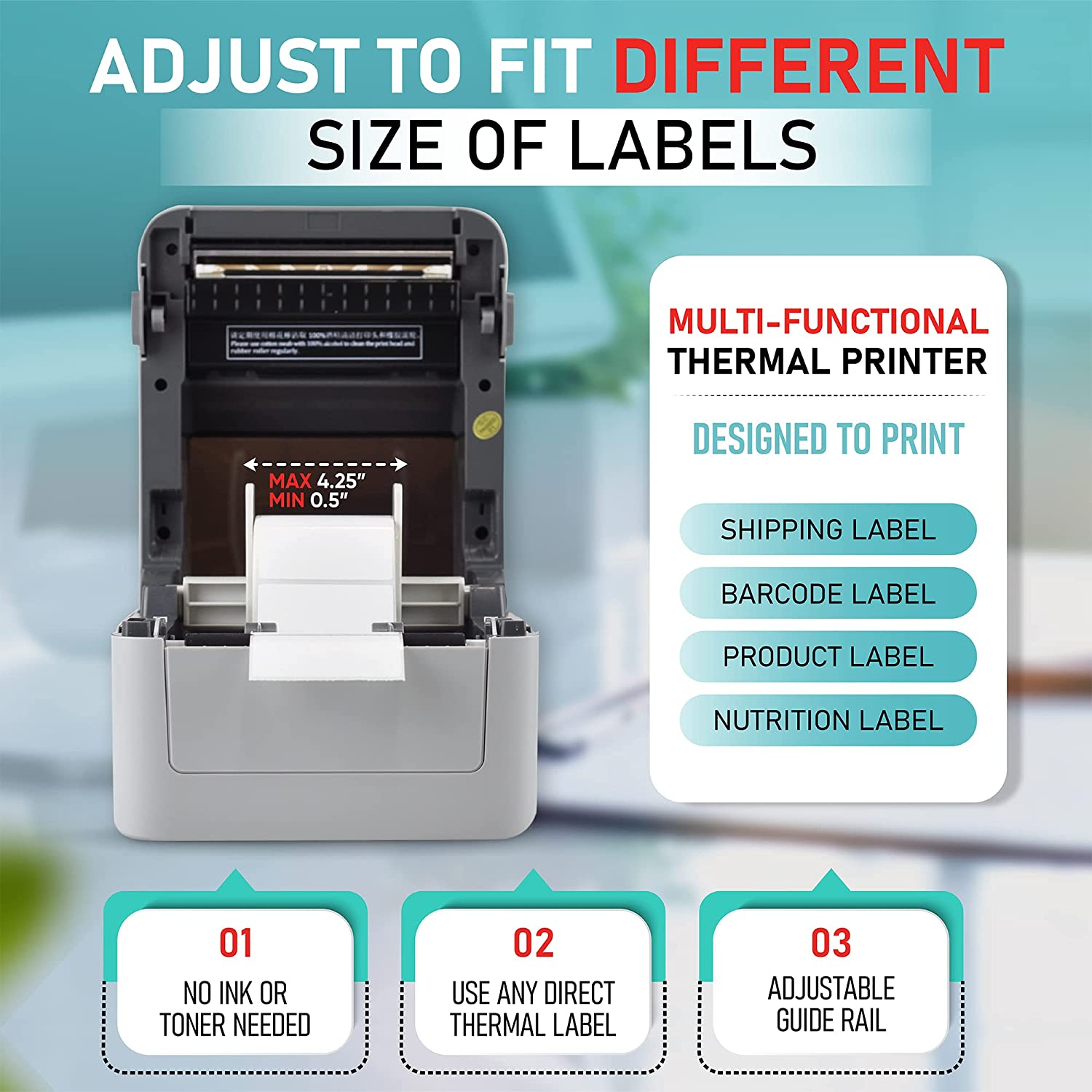

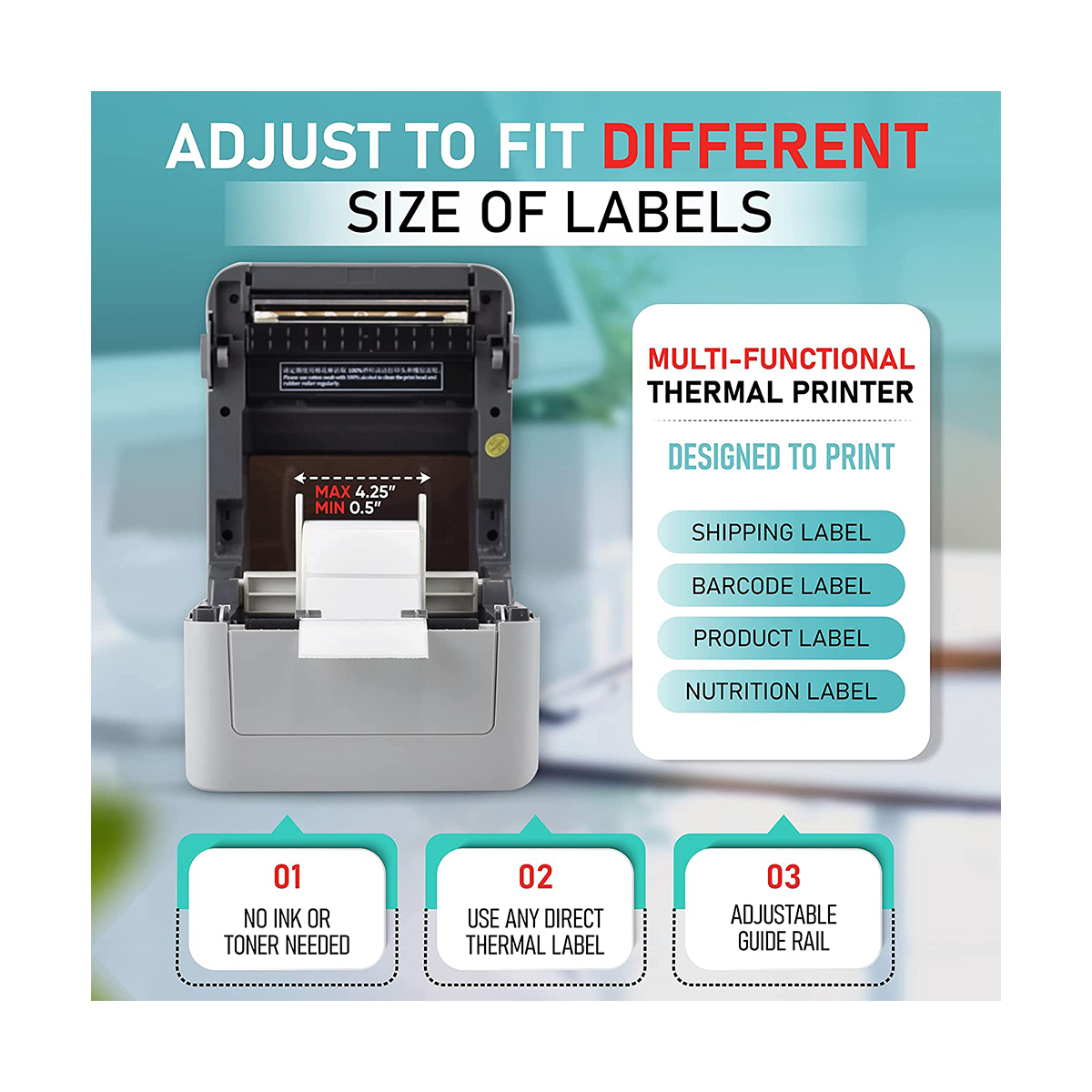

  2. A multi-functional printer to print shipping label, product label, barcode label, labels for other purpose. Able to print minimum of 0.5" & maximum of 4.25" in width, minimum of 0.4" & maximum of 90" in length. Support roll paper loaded inside the printer & fanfold paper loaded from back of the printer. Printing speed is 5 inches per second. Supported labels.

  3. Come a free software of BarTender UltraLite Label Design Software Tool (Windows Only) to print product labels, warehouse label that contains the most frequently used label-design print features, including full design capabilities for text, graphics barcodes, most serializing capabilities.

  4. Arkscan offers 5-star U.S. based real time tech support via Phone, Live Chat & Remote Access. If running into any difficulty to setup or operate the printer, Arkscan's tech support team will be easy to reach and back you up to continue your business as usual.

  5. High speed shipping label printer for Windows & Apple Mac / MacBook via USB port, about 1 second to print one 4x6" shipping label. Thermal direct technology will never require to refill ink toner. The printer supports Arkscan’s labels, Zebra compatible labels, and Dymo compatible labels without pre-printed logo and text on back. All free shipping labels from UP & Fedex are supported. Most common shipping labels in size 4x6", 4x8.25" 4x6.75 are supported.
  Description Notes Date Download
Windows Standard Printer Driver
The Windows Standard Printer Driver is highly versatile and compatible with most label printing platforms/software. However, it is not suitable for use with the following software:

1. Stamps.com Desktop Software
(Please note that this is different than going to the stamps.com website to print a label)

2. FedEx Ship Manager Desktop Software
(Please note that this is different than going to the fedex.com website to print a label)

3. Endicia® DAZzle Desktop Software
4. QuickBooks Enterprise Desktop Software

If you do not use any of the above software, you can use this Windows Standard driver without any issues. However, if you print labels from any of the above desktop software, kindly download the Zebra compatible driver from the link provided below.
July 15, 2022 Download Now
Zebra Compatible Driver for Windows
  Models: 2054A, 2054K, 2054N
When prompted in the installer, please choose model 'Zebra LP2844'

Model: 2054K-AP (Auto-Peel)
When prompted in the installer, please choose model 'Zebra Z4M Plus' (203dpi)

Model: 3044C
When prompted in the installer, please choose model 'Zebra Z4M Plus (300dpi)'

For all models, when prompted select one of the available USB ports during the driver installation, usually USB0001 or labeled 4BARCODE (click here for picture example); if you are unsure which port to select, or there are multiple port options available, please click on this link to learn where you can find this information specifically.
Dec 4, 2018 Download Now
Windows Driver for ARM Processors
If your computer runs on a Windows operating system with an ARM processor, you will need a specific driver. If you are unsure about your computer's processor type, you can click on this link to learn where to look for this information. May 10, 2023 Download Now
Mac Printer Driver
Download & run installer file 2054A-mac-install.pkg while the printer is ON and CONNECTED to your Mac's USB port.

NOTE: The installer, although named '2054A', is compatible with all printer models.
Apr 2, 2020 Download Now
Chromebook Printer Driver
Please download the driver file (Arkscan_Chromebook_Driver.ppd) into a folder outside the 'Download' folder in your Chromebook. For additional help, please watch the Chromebook driver setup video on Youtube.

Alternatively, you can install our Chrome printer extension. More information can be found on the Chrome Printer Extension page.
June 12, 2021 Download Now
Driver for Linux
Download the driver installer, grant the downloaded file executable by the following command 'chmod 777 Arkscan_2054A_Linux_Driver' (without single quotes) on a terminal, and then run Arkscan_2054A_Linux_Driver. For additional help, please watch Linux driver setup video on Youtube. June 12, 2021 Download Now
Android Printer App
On your Android device, download the EZlabel app from the Google Play Store.
NOTE: You must download this app onto your Android, this is not to be used on a computer.  Please see our driver page for video instructions.
Jan 4, 2024 Download Now
iPhone/iPad Printer App
On your iPhone/iPad, download the EZlabel app from the Apple App Store.
NOTE: You must download this app onto your iPhone or iPad, this is not to be used on a computer.  Please see our driver page for video instructions.
Jan 4, 2024 Download Now
Ethernet/LAN Printer Setup for Windows
Model 2054A-LAN network printer setup instruction for Windows.  Please see our driver page for video instructions. Apr 15, 2020 Download Now
Configuration Tool for Windows
Also known as the Diagnostic Tool, helps to diagnose printer issues, as well as apply settings related to LAN, WiFi, and Bluetooth models of printers.

NOTE: You must unpack the contents of the .zip to run the program properly. If the program is not in English, it is not unpacked properly

NOTE: A prompt about needing additional .NET Framework files might need to be downloaded and installed if it's not already on your computer. These files are needed to run the Configuration Tool.
Oct 3, 2017 Download Now
BarTender UltraLite Label Making Software (Windows only)
*UltraLite is available for free. Selecting other versions during setup initiates a trial, after which a subscription fee applies
This label editing software is used for designing and printing custom labels - such as product labels, serial numbers, name tags, and so on. See this page for more info.
NOTE: You do NOT use this software to print a shipping label.
Oct 3, 2017 Download Now
4"x6" Sample Shipping Label
A 4x6 inch shipping label in PDF is for you to test the printer. Download this label, and print it to the Arkscan thermal label printer from within your web browser or in Adobe PDF Reader.  Oct 3, 2022 Download Now
2.25"x1.25" Sample
Barcode Label
A smaller 2.25x1.25 inch barcode label in PDF is for you to test the printer with a smaller label. Download this label, and print it to the Arkscan thermal label printer from within your web browser or in Adobe PDF Reader.  Oct 3, 2022 Download Now

Hardware Setup

Load Labels

Thermal Label Printer Specification
Resolution 8 dots/mm(203DPI)
Printing method Direct Thermal
Max print speed

127 mm / second or 5 inches /second
Max print width

108 mm or 4.25 inches
Max print length

2286 mm or 90 inches
Media Type

 Thermal paper (width 79.5± 0.5mm,thickness 0.06
Paper Supply Method

8 dots/mm(384 dots/line)
Media width

20-112mm (0.78" - 4.4")
Media thickness

0.06~0.16mm((2.36~6.3mil)
Label length

10~2,286mm(0.4''~90'')
Label roll capacity

127 mm (5") OD (outside wound)
Emulation

TSPL, EPL, ZPL & DPL
Enclosure

Double-walled plastic
Physical dimension

211 mm(W)× 240 mm (D)× 166 mm(H)
Weight

2.15kG or 4.75LB
Processor

32-bit RISC CPU
Memory 4MB Flash Memory, 8MB SDRAM, SD card reader for Flash memory expansion, up to 4 GB
Interface

USB 2.0
Internal fonts

8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.
Barcode

1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST 2D bar code:PDF-417, Maxicode, DataMatrix, QR code
Font and barcode rotation

0°, 90°, 180°, 270°
Environment condition

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing, Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
  2054K-USB 2054K-WF 2054K-LAN 2054K-AP 2054K-BT 2054A-USB 2054A-LAN 3044C-WF 2054N-WF 2054N-BT
Windows
Mac
Chromebook
iOS (iPhone)
Android
USB
WiFi
Bluetooth
Ethernet
Auto Peel
Label Compartment
300 DPI
203 DPI
Fan-Fold Labels
Roll Labels * * *
* Requires the use of LP204 External Label Holder

Accessories for 2054K

(LP204) Label Holder
This label holder can be extremely useful for high-volume shippers. It can hold both Fan-fold labels and label rolls. Click on the image to learn more.
(CB01) USB Printer Cable
This is a standard USB-A to USB printer cable. Can be used as a replacement for the USB cable that came with your Arkscan thermal printer. Click on the image to learn more.
(CB02) USB to USB-C & Micro USB Converter Cable
This USB adapter is necessary if your desktop or laptop does not have regular USB ports but only has USB-C. This adapter also has a Micro-USB for attaching to Android devices. Click on the image to learn more.
(YC60) Power Adapter
If the power adapter and cable that came with your printer were lost or misplaced, this is the perfect replacement! The YC60 Power Adapter is the same one that originally came with your Arkscan thermal printer. Click on the image to learn more.
(RS3) Rod & Shields
If the rod and shields that came with your printer were lost or misplaced, this is the perfect replacement! These rods and shields are the same ones that originally came with your Arkscan thermal printer. Click on the image to learn more.

Arkscan Direct Thermal Labels

(PL225) - 2.25" x 1.25" Direct Thermal Label
- High-quality strong adhesive labels
- Pure white labels for crystal clear and dark prints
- Amazon FNSKU, Amazon FBA, Barcodes, Product Labels, Addresses, Return, and General Use labels
- These labels are compatible with Arkscan and Zebra models of thermal printers
(PL3X2) - 3" x 1" Direct Thermal Labl
- High-quality strong adhesive labels
- Pure white labels for crystal clear and dark prints
- Great for Shipping Labels, Price Tags, Storage Bins, Boxes, Freezer Labels, Shipping Labels, General Purpose Labels
- These labels are compatible with Arkscan and Zebra models of thermal printers
PL3x1 1000x1000 Dimensions
(PL3X2) - 3" x 2" Direct Thermal Label
- High-quality strong adhesive labels
- Pure white labels for crystal clear and dark prints
- Great for Shipping Labels, Price Tags, Storage Bins, Boxes, Freezer Labels, Shipping Labels, General Purpose Labels
- These labels are compatible with Arkscan and Zebra models of thermal printers
(PL4x3) - 4" x 3" Direct Thermal Label
- High-quality strong adhesive labels
- Pure white labels for crystal clear and dark prints
- Great for Shipping, Storage Bin, Feezer, Price Tag, or General Purpose Labels
- These labels are compatible with Arkscan and Zebra models of thermal printers
(RL2) - 2" Round Direct Thermal Label
- High-quality strong adhesive labels
- Pure white labels for crystal clear and dark prints
- Barcodes, Name Tags, DIY Logo Design, QR Coeds, or General Purpose Labels
- These labels are compatible with Arkscan and Zebra models of thermal printers
(SL450) 4" x 6" Direct Thermal Shipping Label
- High-quality strong adhesive labels
- Pure white labels for crystal clear and dark prints
- Perfect shipping labels for all online shipping platforms
- These labels are compatible with Arkscan and Zebra models of thermal printers
SL450 1000x1000 Dimensions
(SL500) 4" x 6" Fan-Fold Direct Thermal Label
- High-quality strong adhesive labels
- Pure white labels for crystal clear and dark prints
- Perfect shipping labels for all online shipping platforms
- These labels are compatible with Arkscan and Zebra models of thermal printers
SL500 1000x1000 Dimensions
Available in various models:
USB only (Model: 2054K-USB)
USB + Ethernet/LAN (Model: 2054K-LAN)
USB + WiFi (Model: 2054K-WF)
USB + Bluetooth (Model: 2054K-BT)
USB + Bluetooth + Auto-Peel (Model: 2054K-AP)

Model: 2054K-USB

$189.00 each
+
Add to cart

Model: 2054K-LAN

$239.00 each
+
Add to cart

Model: 2054K-WF

$239.00 each
+
Add to cart

Model: 2054K-BT

$239.00 each
+
Add to cart

Model: 2054K-AP

$239.00 each
+
Add to cart
If you are a reseller or distributor, please contact us for pricing by clicking here.
